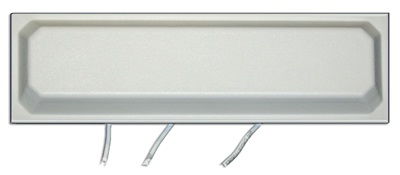

Motorola ML-2452-PTA3M3-036 network antenna Omni-directional antenna RP-SMA 7 dBi
Model ML-2452-PTA3M3-036EAN 682017468556
21 specifications
- Weight318 g
- ColourGrey
- Antenna gain level (max)7 dBi
- Antenna typeOmni-directional antenna
Overview
- Weight
- 318 g
- Colour
- Grey
- Antenna gain level (max)
- 7 dBi
- Antenna type
- Omni-directional antenna
- Brand
- Zebra
- Category
- Network Antenna
- Model
- ML-2452-PTA3M3-036
- Part number
- ML-2452-PTA3M3-036
- EAN / UPC
- 682017468556, 3609740141287
- Also known as
- Motorola ML-2452-PTA3M3-036 network antenna Omni-directional antenna RP-SMA 7 dBi
Specifications
21 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 7 dBi |
| Frequency band | 2.4/5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Antenna gain (2.4 GHz) | 3 dBi |
| Antenna gain (5 GHz) | 3 dBi |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 90° |
| Horizontal beam width (5 GHz) | 360° |
| Vertical beam width (5 GHz) | 90° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Connector gender | Male |
| Polarization | Vertical polarization |
| Product colour | Grey |
| Cable length | 0.91 m |
| Cable type | RG-58 |
| Mounting | Ceiling |
| Purpose | Indoor |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 318 g |
Other features
| Specification | Value |
|---|---|
| Frequency range | 2400 - 2500 / 4900 - 5990 MHz |
