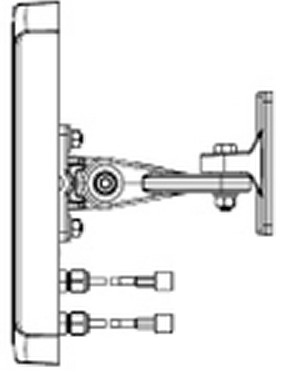

Motorola ML-2452-PNL9M3-036 network antenna RP-SMA 10.7 dBi
Model ML-2452-PNL9M3-036
15 specifications
- Weight821 g
- Antenna gain level (max)10.7 dBi
- Antenna connector typeRP-SMA
- Width259.1 mm
Overview
- Weight
- 821 g
- Antenna gain level (max)
- 10.7 dBi
- Antenna connector type
- RP-SMA
- Width
- 259.1 mm
- Brand
- Zebra
- Category
- Network Antenna
- Model
- ML-2452-PNL9M3-036
- Part number
- ML-2452-PNL9M3-036
- Also known as
- Motorola ML-2452-PNL9M3-036 network antenna RP-SMA 10.7 dBi
Specifications
15 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 10.7 dBi |
| Frequency band | 2.4 - 2.5 / 5.1 - 5.875 GHz |
| Horizontal beam width (2.4 GHz) | 75° |
| Vertical beam width (2.4 GHz) | 70° |
| Horizontal beam width (5 GHz) | 55° |
| Vertical beam width (5 GHz) | 60° |
Features
| Specification | Value |
|---|---|
| Antenna connector type | RP-SMA |
| Connector gender | Male |
| Polarization | Vertical polarization |
| Purpose | Indoor & outdoor |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 259.1 mm |
| Depth | 185.6 mm |
| Height | 259.1 mm |
| Weight | 821 g |
Other features
| Specification | Value |
|---|---|
| Connector(s) | 2x RP-SMA |
