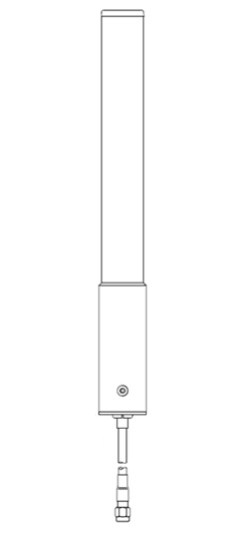

Motorola ML-2452-HPA5-036 network antenna RP-SMA 4.9 dBi
Model ML-2452-HPA5-036
12 specifications
- Weight136 g
- Antenna gain level (max)4.9 dBi
- Antenna connector typeRP-SMA
Overview
- Weight
- 136 g
- Antenna gain level (max)
- 4.9 dBi
- Antenna connector type
- RP-SMA
- Brand
- Zebra
- Category
- Network Antenna
- Model
- ML-2452-HPA5-036
- Part number
- ML-2452-HPA5-036
- Also known as
- Motorola ML-2452-HPA5-036 network antenna RP-SMA 4.9 dBi
Specifications
12 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 4.9 dBi |
| Frequency band | 2.4 - 2.5 / 5.1 - 5.875 GHz |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 44° |
| Horizontal beam width (5 GHz) | 360° |
| Vertical beam width (5 GHz) | 18° |
Features
| Specification | Value |
|---|---|
| Antenna connector type | RP-SMA |
| Connector gender | Male |
| Polarization | Vertical polarization |
| Purpose | Indoor & outdoor |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 136 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | RG-58 Ultralink |
