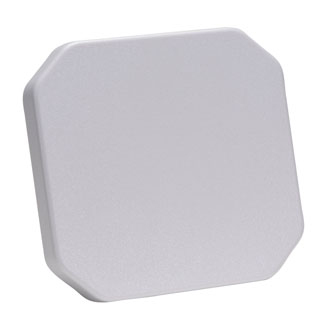

Motorola AN720 network antenna N-type 6 dBi
Model AN720Part no. AN720-L51NF00WEUEAN 5704174279709
18 specifications
- Weight460 g
- ColourWhite
- Antenna gain level (max)6 dBi
- Antenna connector typeN-type
- Operating temperature (T-T)-30 - 70 °C
- Width132.8 mm
Overview
- Weight
- 460 g
- Colour
- White
- Antenna gain level (max)
- 6 dBi
- Antenna connector type
- N-type
- Operating temperature (T-T)
- -30 - 70 °C
- Width
- 132.8 mm
- Brand
- Zebra
- Category
- Network Antenna
- Model
- AN720
- Part number
- AN720-L51NF00WEU
- EAN / UPC
- 5704174279709, 8596375038196
- Also known as
- Motorola AN720 network antenna N-type 6 dBi
Specifications
18 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Impedance | 50 Ω |
Features
| Specification | Value |
|---|---|
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Circular polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Product colour | White |
| Mounting | Wall |
| Purpose | Indoor & outdoor |
Certificates
| Specification | Value |
|---|---|
| Certification | MIL-STD-810 IEC 68-2-27 lEC 68-2-30 IP 6 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | 40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 132.8 mm |
| Depth | 18.1 mm |
| Height | 132.8 mm |
| Weight | 460 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85177100 |
Other features
| Specification | Value |
|---|---|
| Frequency range | 865-868 MHz |
