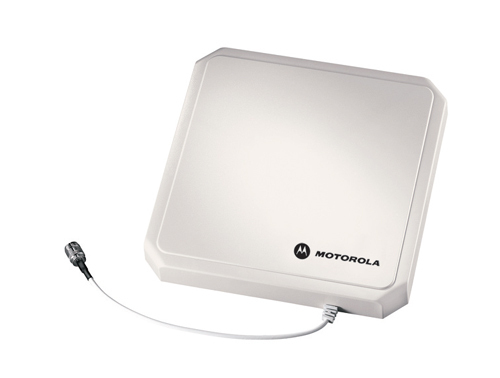

AN480 RFID Antenna
Model AN480 RFID AntennaPart no. AN480-CR66100WREAN 4054842366745
17 specifications
- Weight1.13 kg
- ColourWhite
- Antenna gain level (max)6 dBi
- Antenna typeDirectional antenna
- Width259.1 mm
Overview
- Weight
- 1.13 kg
- Colour
- White
- Antenna gain level (max)
- 6 dBi
- Antenna type
- Directional antenna
- Width
- 259.1 mm
- Brand
- Zebra
- Category
- Network Antenna
- Model
- AN480 RFID Antenna
- Part number
- AN480-CR66100WR
- EAN / UPC
- 4054842366745, 8596375038127
- Also known as
- Motorola AN480 RFID Antenna network antenna Directional antenna N-type 6 dBi
Specifications
17 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Impedance | 50 Ω |
| Horizontal beam width | 65° |
| Vertical beam width | 65° |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | N-type |
| Voltage Standing Wave Ratio (VSWR) | 1.22:1 |
| Product colour | White |
| Power handling | 2 W |
| Purpose | Outdoor |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, UL |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 259.1 mm |
| Depth | 259.1 mm |
| Height | 50.3 mm |
| Weight | 1.13 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85177100 |
Other features
| Specification | Value |
|---|---|
| Frequency range | 865 - 868 MHz |
