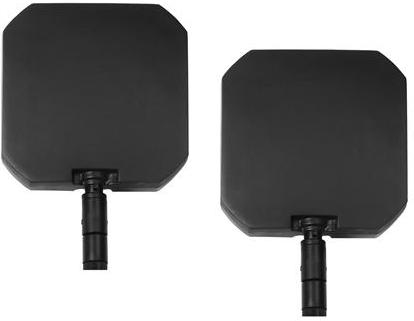

Avocent HGA51G-DIR30 network antenna Directional antenna RP-SMA 8 dBi
Model HGA51G-DIR30EAN 636430043739
19 specifications
- Weight680 g
- ColourBlack
- Antenna gain level (max)8 dBi
- Antenna typeDirectional antenna
- Operating temperature (T-T)0 - 40 °C
- Width114 mm
Overview
- Weight
- 680 g
- Colour
- Black
- Antenna gain level (max)
- 8 dBi
- Antenna type
- Directional antenna
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 114 mm
- Brand
- Vertiv
- Category
- Network Antenna
- Model
- HGA51G-DIR30
- Part number
- HGA51G-DIR30
- EAN / UPC
- 636430043739
- Also known as
- Vertiv Avocent HGA51G-DIR30 network antenna Directional antenna RP-SMA 8 dBi
Specifications
19 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 8 dBi |
| Frequency band | 5.8 GHz |
| Horizontal beam width (5 GHz) | 40° |
| Vertical beam width (5 GHz) | 25° |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | RP-SMA |
| Polarization | Horizontal polarization |
| Product colour | Black |
| Maximum operating distance | 305 m |
| Purpose | Indoor & outdoor |
| Compatible products | MPX1500T, MPX1500R, MPX1000T, MPX1000R |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL, FCC, CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 114 mm |
| Depth | 38 mm |
| Height | 267 mm |
| Weight | 680 g |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 114 x 38 x 267 mm |
