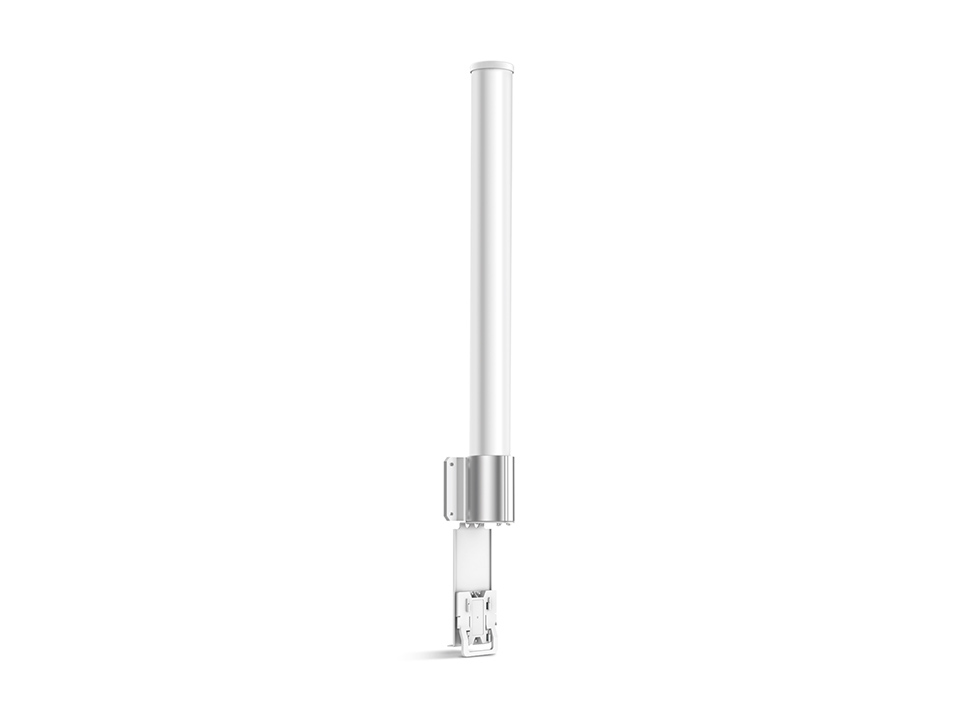

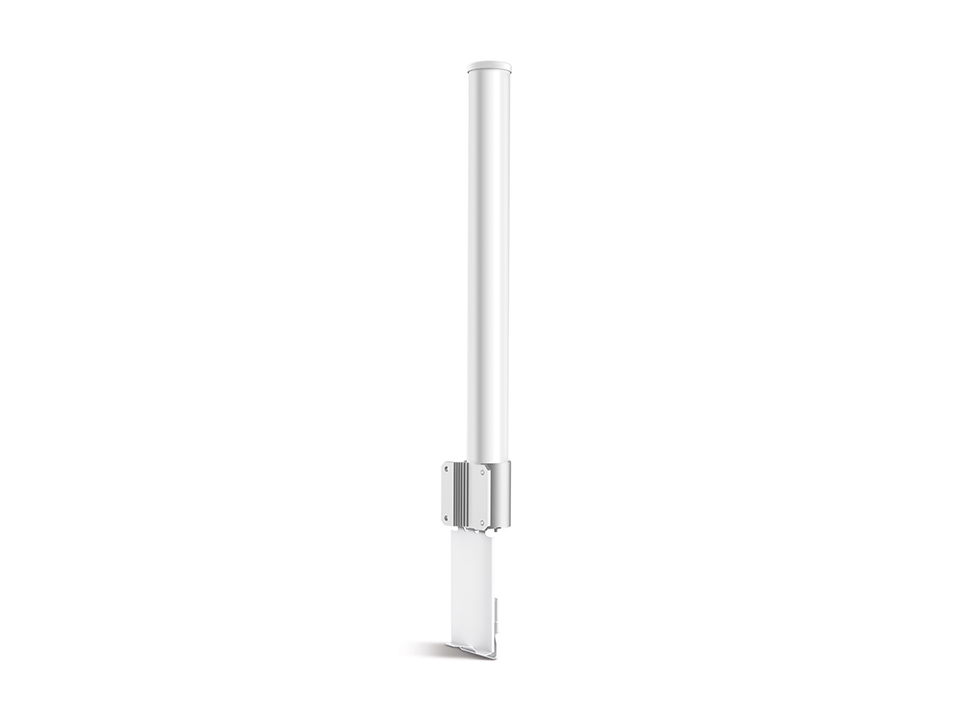

TL-ANT2410MO network antenna Omni-directional antenna RP-SMA 10 dBi
Model TL-ANT2410MOEAN 6935364081386
21 specifications
- ColourWhite
- Antenna gain level (max)10 dBi
- Antenna typeOmni-directional antenna
- Width76 mm
Overview
- Colour
- White
- Antenna gain level (max)
- 10 dBi
- Antenna type
- Omni-directional antenna
- Width
- 76 mm
- Brand
- TP-Link
- Category
- Network Antenna
- Model
- TL-ANT2410MO
- Part number
- TL-ANT2410MO
- EAN / UPC
- 6935364081386
- Also known as
- TP-Link TL-ANT2410MO network antenna Omni-directional antenna RP-SMA 10 dBi
Specifications
21 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 10 dBi |
| Frequency band | 2.35-2.55 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 360° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Connector gender | Female |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.85 |
| Product colour | White |
| Survival wind speed | 241 km/h |
| Mounting | Pole |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76 mm |
| Height | 800 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 155 mm |
| Package depth | 160 mm |
| Package height | 1080 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
