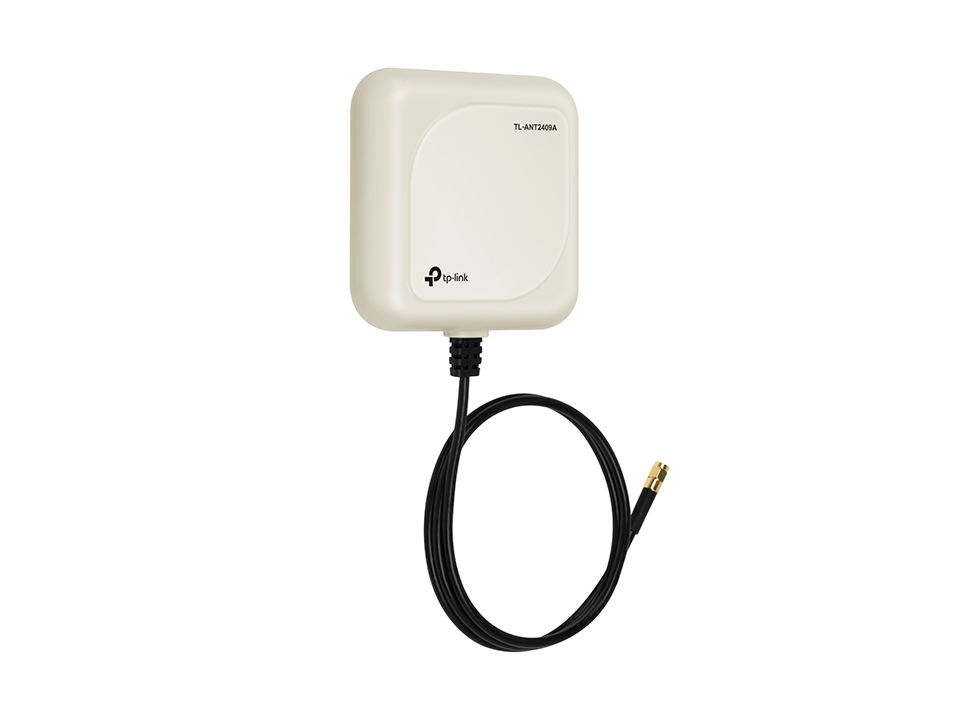

2.4GHz 9dBi Directional Antenna
Model TL-ANT2409AEAN 820334676081
11 specifications
- ColourBlack, White
- Antenna gain level (max)9 dBi
- Antenna typeDirectional antenna
- Operating temperature (T-T)-20 - 65 °C
Overview
- Colour
- Black, White
- Antenna gain level (max)
- 9 dBi
- Antenna type
- Directional antenna
- Operating temperature (T-T)
- -20 - 65 °C
- Brand
- TP-Link
- Category
- Network Antenna
- Model
- TL-ANT2409A
- Part numbers
- TL-ANT2409A, TL-ANT2409A V1
- EAN / UPC
- 820334676081, 115970741942, 132017775623, 151903615799 +13 more
- Also known as
- TP-Link 2.4GHz 9dBi Directional Antenna
Specifications
11 specifications in 3 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 9 dBi |
| Frequency band | 2.4 GHz |
| Gain | 9 dBi |
| Impedance | 50 Ω |
| Horizontal beam width | 60° |
| Vertical beam width | 76° |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Polarization | Vertical polarization |
| Product colour | Black, White |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -30 - 75 °C |
