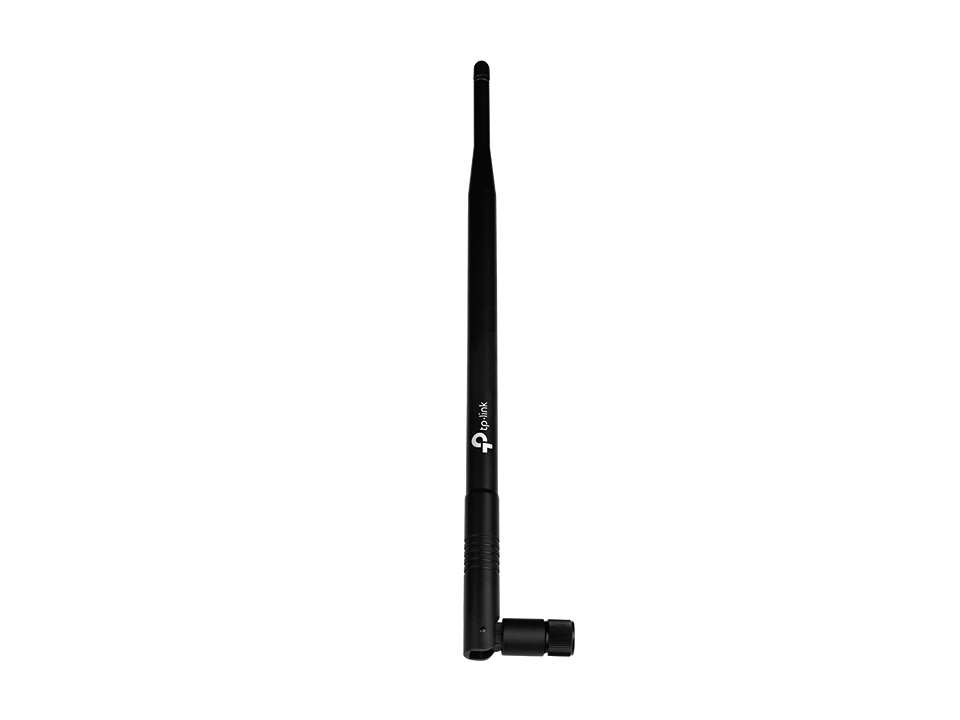

2.4GHz 8dBi Indoor Omni-directional Antenna
Model TL-ANT2408CLEAN 168141652295
14 specifications
- Antenna gain level (max)8 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-10 - 60 °C
Overview
- Antenna gain level (max)
- 8 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -10 - 60 °C
- Brand
- TP-Link
- Category
- Network Antenna
- Model
- TL-ANT2408CL
- Part numbers
- TL-ANT2408CL, TL-ANT2408CL V1
- EAN / UPC
- 168141652295, 079531962903, 172302832570, 746320533704 +7 more
- Also known as
- TP-Link 2.4GHz 8dBi Indoor Omni-directional Antenna
Specifications
14 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 8 dBi |
| Frequency band | 2.4 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 15° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.92: 1 |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 80 °C |
