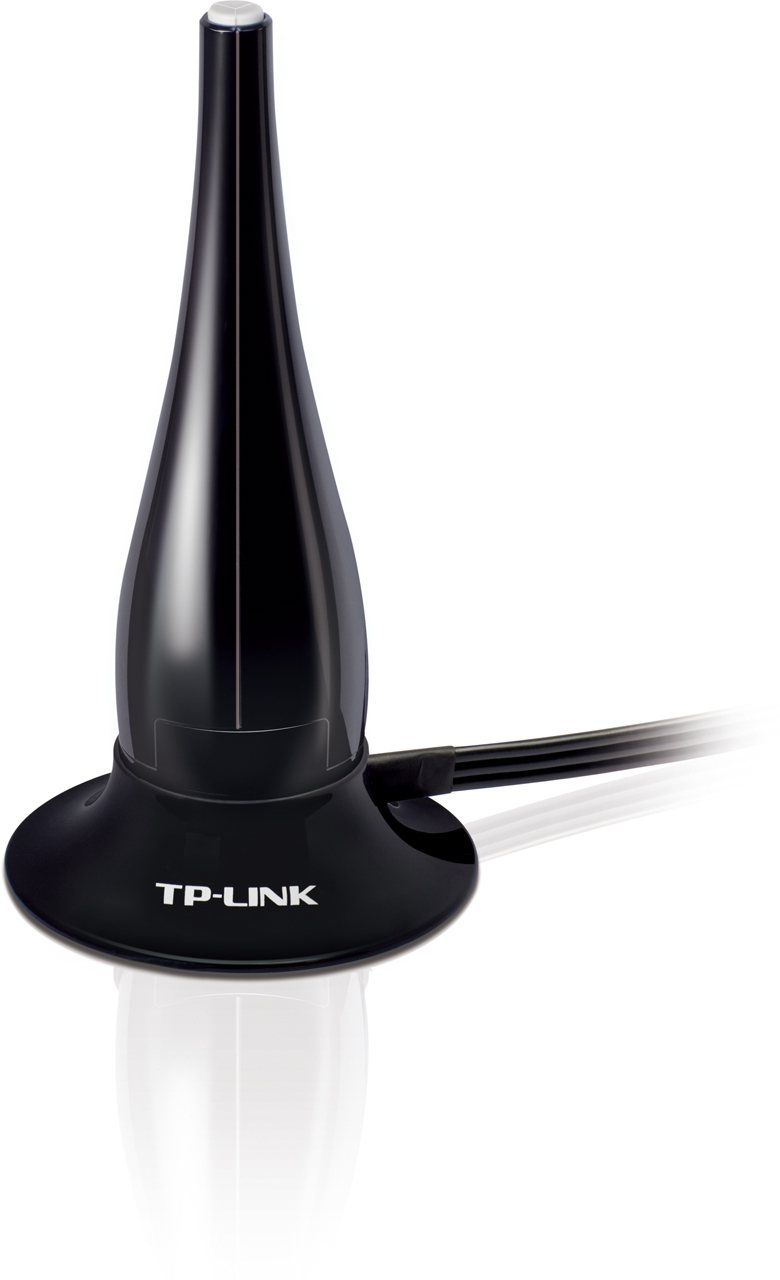

TL-ANT2403N network antenna Omni-directional antenna RP-SMA 3 dBi
Model TL-ANT2403NEAN 191120011318
16 specifications
- ColourBlack
- Antenna gain level (max)3 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-20 - 60 °C
Overview
- Colour
- Black
- Antenna gain level (max)
- 3 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -20 - 60 °C
- Brand
- TP-Link
- Category
- Network Antenna
- Model
- TL-ANT2403N
- Part number
- TL-ANT2403N
- EAN / UPC
- 191120011318, 845973052140, 6123761574772, 6935364052140
- Also known as
- TP-Link TL-ANT2403N network antenna Omni-directional antenna RP-SMA 3 dBi
Specifications
16 specifications in 3 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 3 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Networking standards | IEEE 802.11n |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Connector gender | Male |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.92:1 |
| Product colour | Black |
| Cable length | 1 m |
| Cable type | RG-174 |
| Purpose | Indoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
