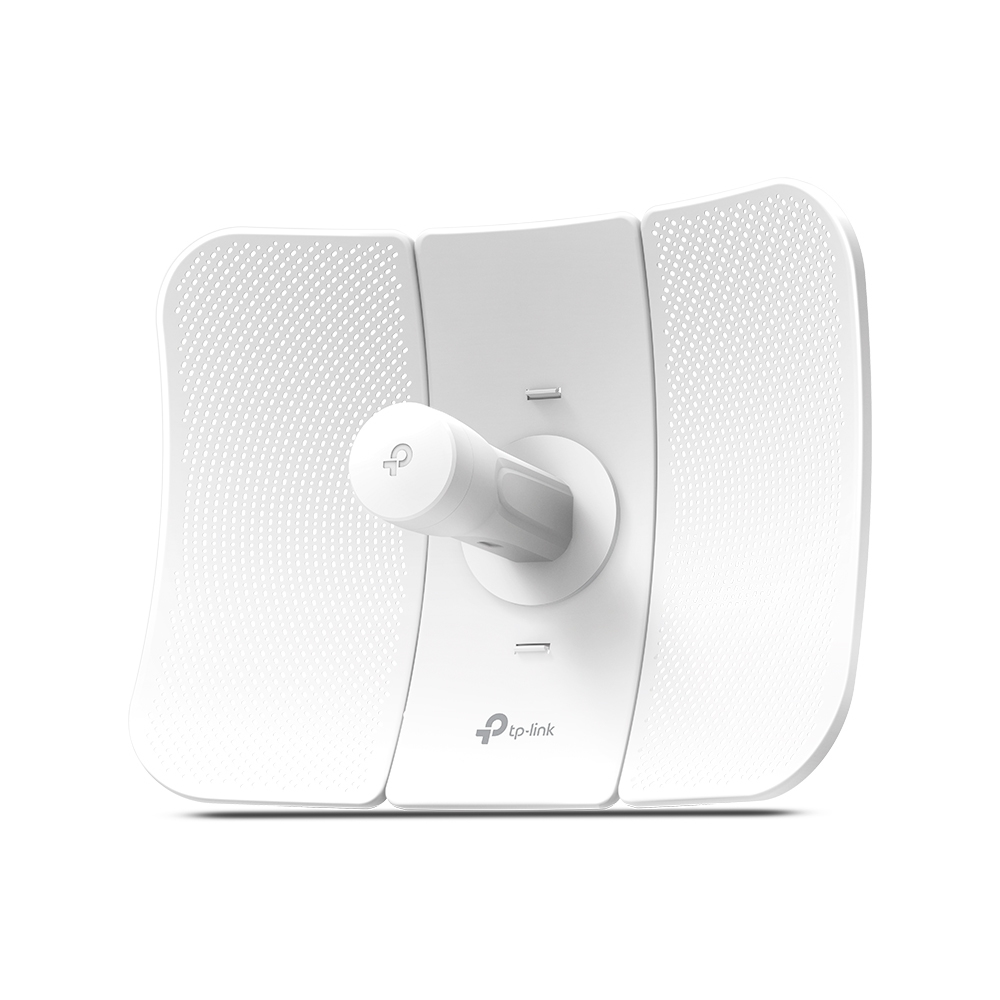

CPE710 network antenna Directional antenna PoE/LAN 23 dBi
Model CPE710EAN 6935364089702
31 specifications
- Memory128 MB
- ColourWhite
- Antenna gain level (max)23 dBi
- Antenna typeDirectional antenna
- Power source typePoE
- Operating temperature (T-T)-40 - 70 °C
Overview
- Memory
- 128 MB
- Colour
- White
- Antenna gain level (max)
- 23 dBi
- Antenna type
- Directional antenna
- Power source type
- PoE
- Operating temperature (T-T)
- -40 - 70 °C
- Brand
- TP-Link
- Category
- Network Antenna
- Model
- CPE710
- Part number
- CPE710
- EAN / UPC
- 6935364089702, 840460604888, 845973089702, 1210002611527 +2 more
- Also known as
- TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
Specifications
31 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 23 dBi |
| Frequency band | 5.15 - 5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Gain | 23 dBi |
| Horizontal beam width | 9° |
| Vertical beam width | 7° |
| Built-in processor | Yes |
| Processor frequency | 750 MHz |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Wi-Fi standards | 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | PoE/LAN |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP65 |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Input voltage | 24 V |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS, IC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 366 mm |
| Depth | 280 mm |
| Height | 207 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 85176990 |
