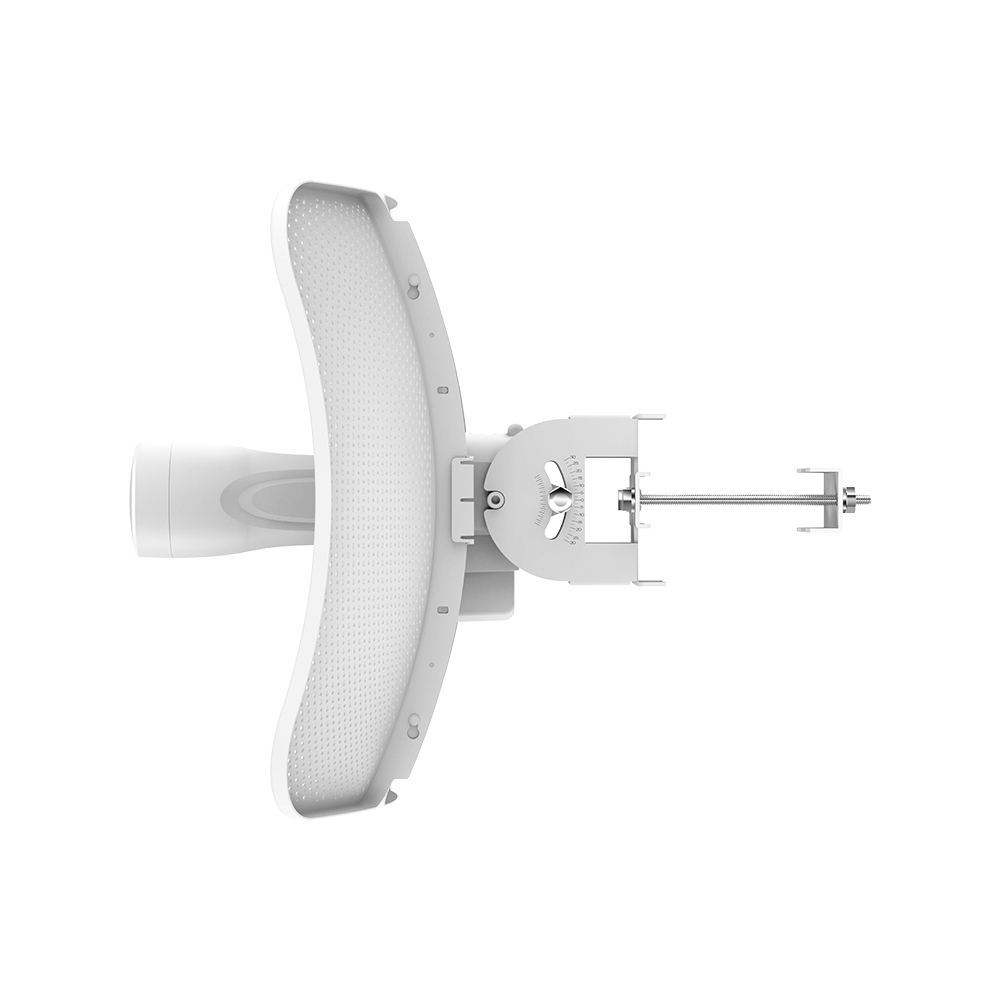

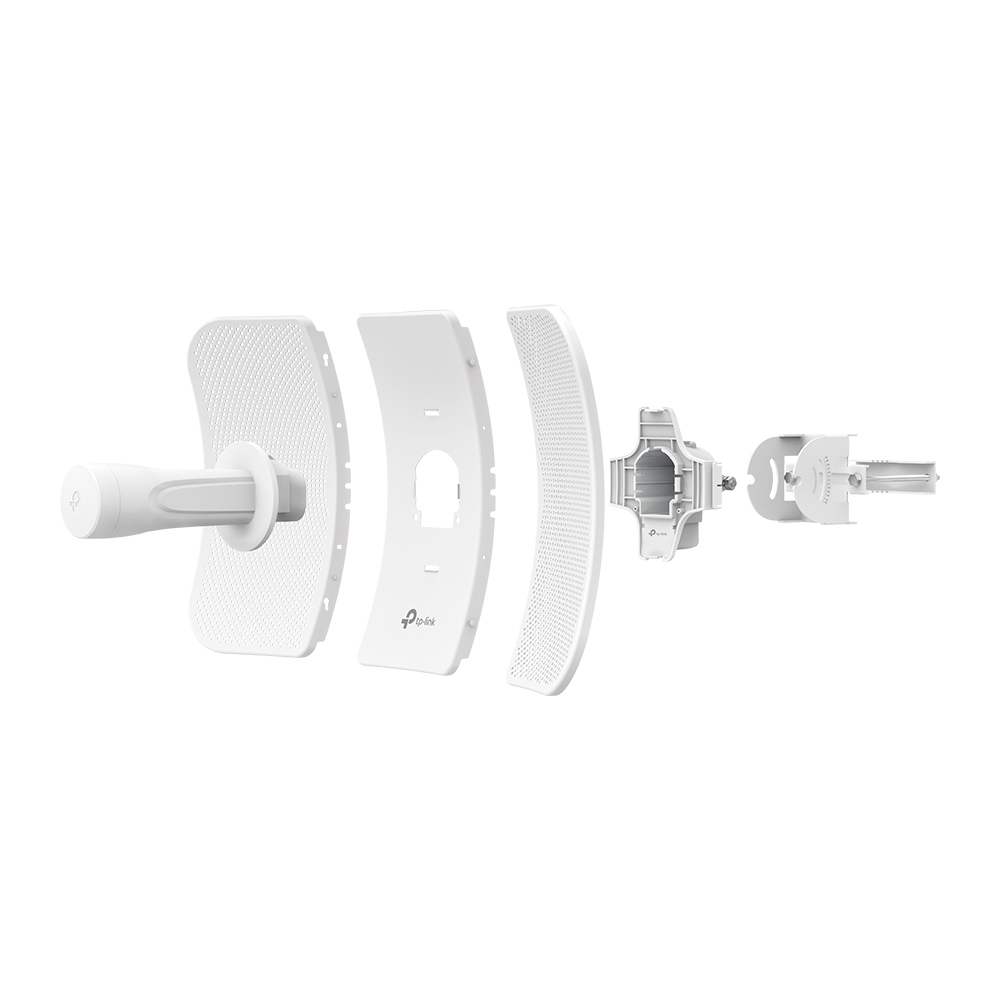

CPE610 network antenna Directional antenna 27 dBi
Model CPE610EAN 845973081027
27 specifications
- Memory64 MB
- ColourWhite
- Antenna gain level (max)27 dBi
- Antenna typeDirectional antenna
- Power source typePoE
- Operating temperature (T-T)-40 - 70 °C
Overview
- Memory
- 64 MB
- Colour
- White
- Antenna gain level (max)
- 27 dBi
- Antenna type
- Directional antenna
- Power source type
- PoE
- Operating temperature (T-T)
- -40 - 70 °C
- Brand
- TP-Link
- Category
- Network Antenna
- Model
- CPE610
- Part number
- CPE610
- EAN / UPC
- 845973081027, 840460604871, 845973070922, 6935364081027 +1 more
- Also known as
- TP-Link CPE610 network antenna Directional antenna 27 dBi
Specifications
27 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 27 dBi |
| Frequency band | 5.15 - 5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
| Antenna gain (5 GHz) | 23 dBi |
| Horizontal beam width | 9° |
| Vertical beam width | 7° |
| Built-in processor | Yes |
| Processor frequency | 560 MHz |
| Flash memory | 8 MB |
| Internal memory | 64 MB |
| Internal memory type | DDR2 |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP65 |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Input voltage | 24 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Cables included | AC |
