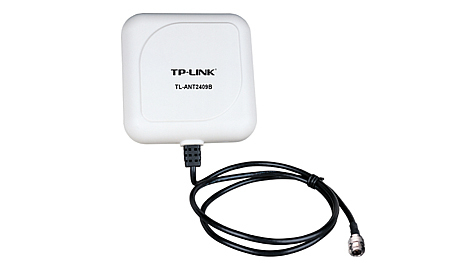

TP-Link 2.4GHz 9dBi Outdoor Directional Antenna
Model 2.4GHz 9dBi Outdoor Directional AntennaPart no. TL-ANT2409BEAN 5052584403161
18 specifications
- Antenna gain level (max)9 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)-10 - 60 °C
- Width120 mm
Overview
- Antenna gain level (max)
- 9 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- -10 - 60 °C
- Width
- 120 mm
- Brand
- TP-Link
- Category
- Network Antenna
- Model
- 2.4GHz 9dBi Outdoor Directional Antenna
- Part number
- TL-ANT2409B
- EAN / UPC
- 5052584403161, 071030303799, 102931025746, 132018351628 +9 more
- Also known as
- TP-Link 2.4GHz 9dBi Outdoor Directional Antenna network antenna
Specifications
18 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 9 dBi |
| Frequency band | 2.4 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 60° |
| Vertical beam width | 76° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.92: 1 |
| Cable length | 1 m |
| Mounting | Wall |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 40 mm |
Other features
| Specification | Value |
|---|---|
| Network connection type | 802.11b/g |
