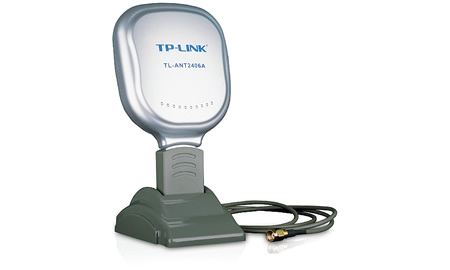

2.4GHz 6dBi Indoor Directional Antenna
Model 2.4GHz 6dBi Indoor Directional AntennaPart no. TL-ANT2406AEAN 8459730520272
18 specifications
- Antenna gain level (max)6 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)-10 - 60 °C
- Width80 mm
Overview
- Antenna gain level (max)
- 6 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- -10 - 60 °C
- Width
- 80 mm
- Brand
- TP-Link
- Category
- Network Antenna
- Model
- 2.4GHz 6dBi Indoor Directional Antenna
- Part number
- TL-ANT2406A
- EAN / UPC
- 8459730520272, 123487897717, 132017775616, 191120091075 +8 more
- Also known as
- TP-Link 2.4GHz 6dBi Indoor Directional Antenna network antenna
Specifications
18 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g |
| Impedance | 50 Ω |
| Horizontal beam width | 45° |
| Vertical beam width | 45° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.92: 1 |
| Cable length | 1.3 m |
| Cable type | RG-174 Coax |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 80 mm |
| Height | 158 mm |
