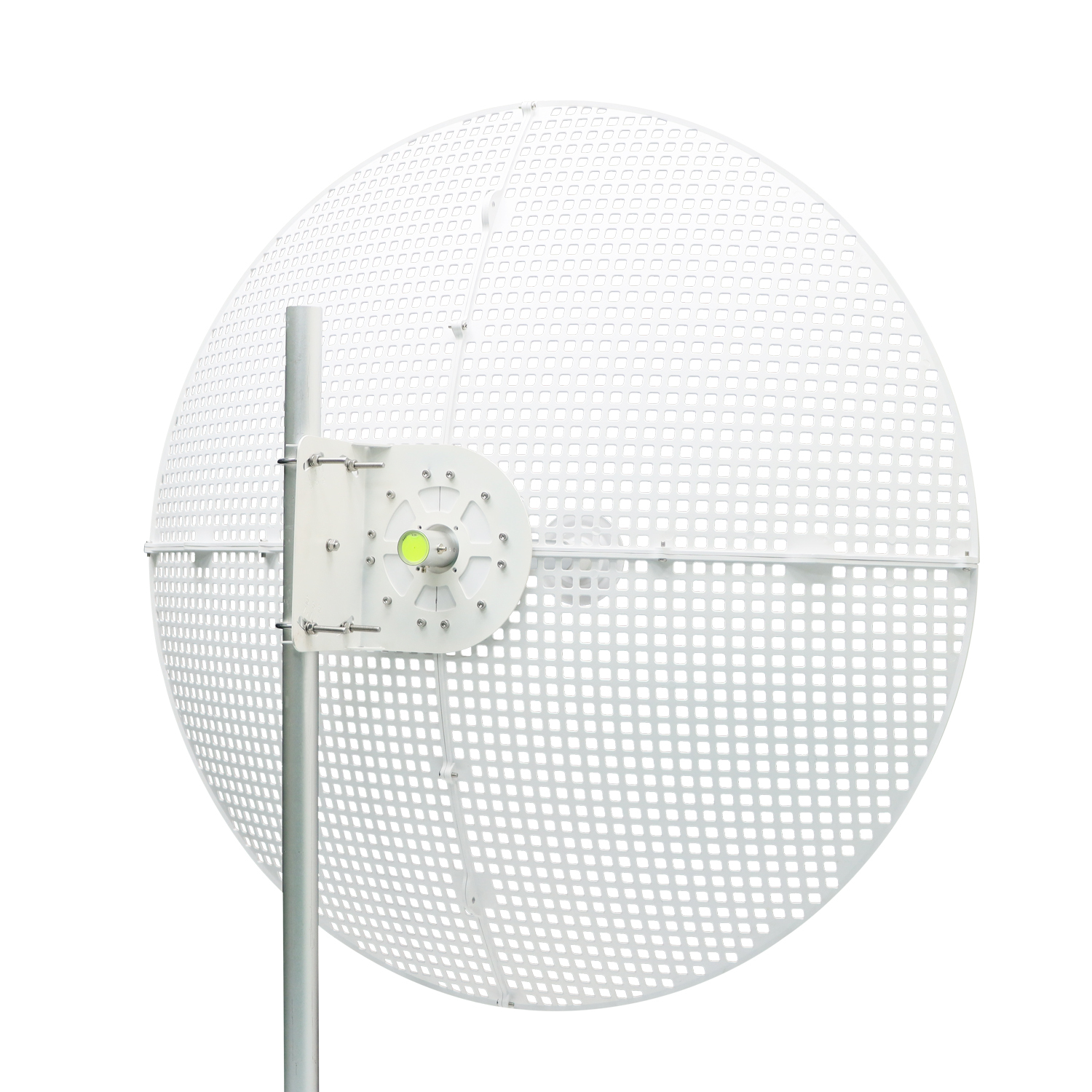

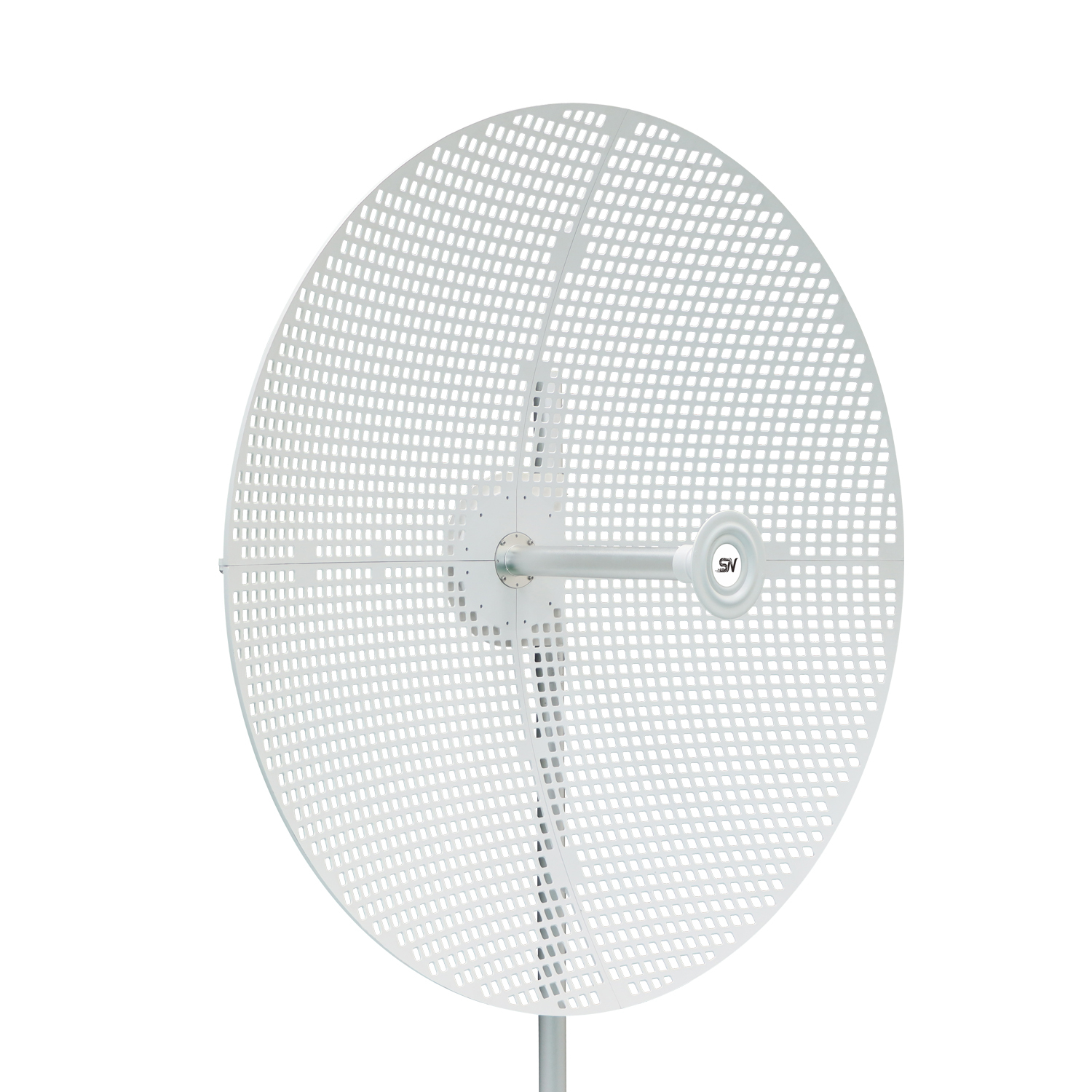

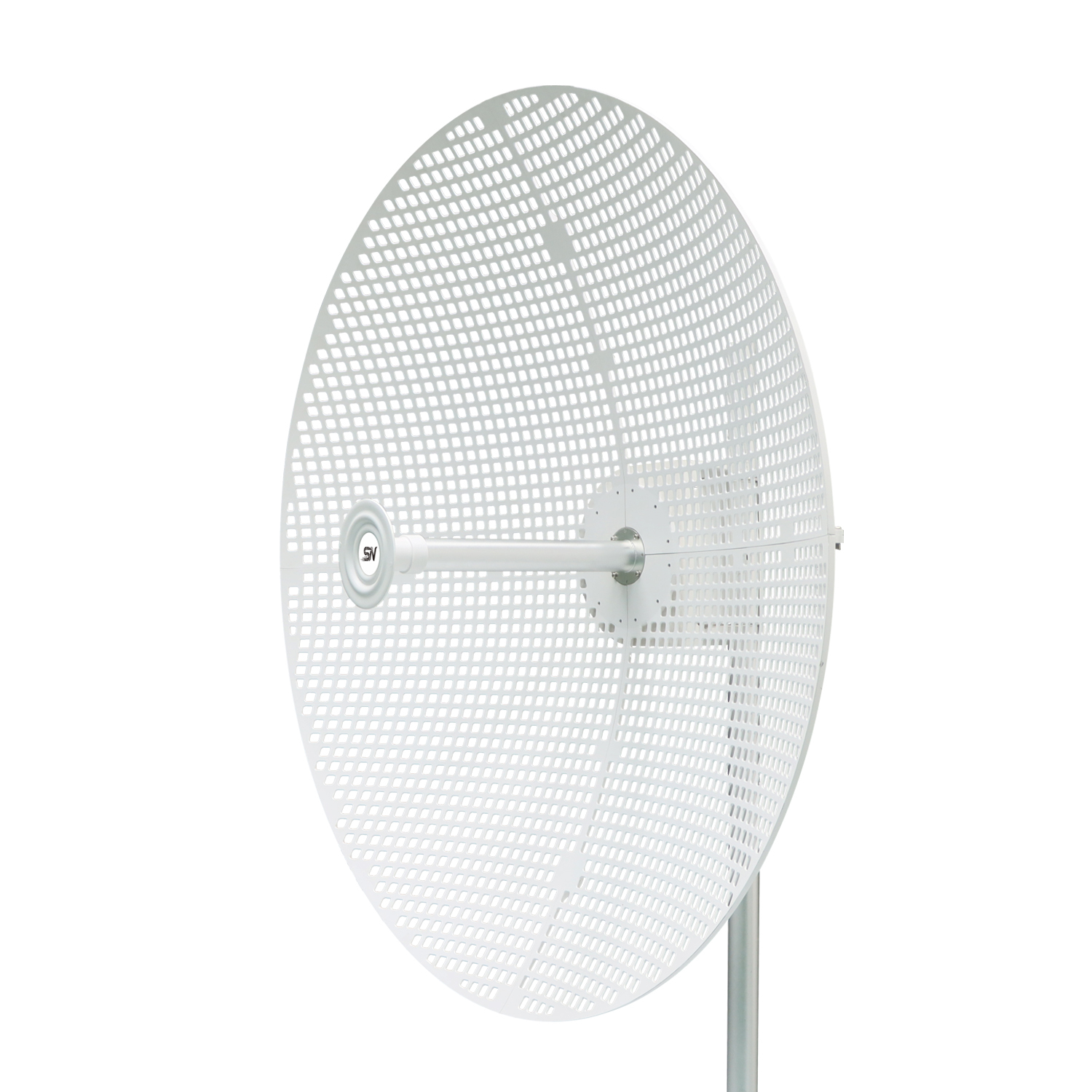

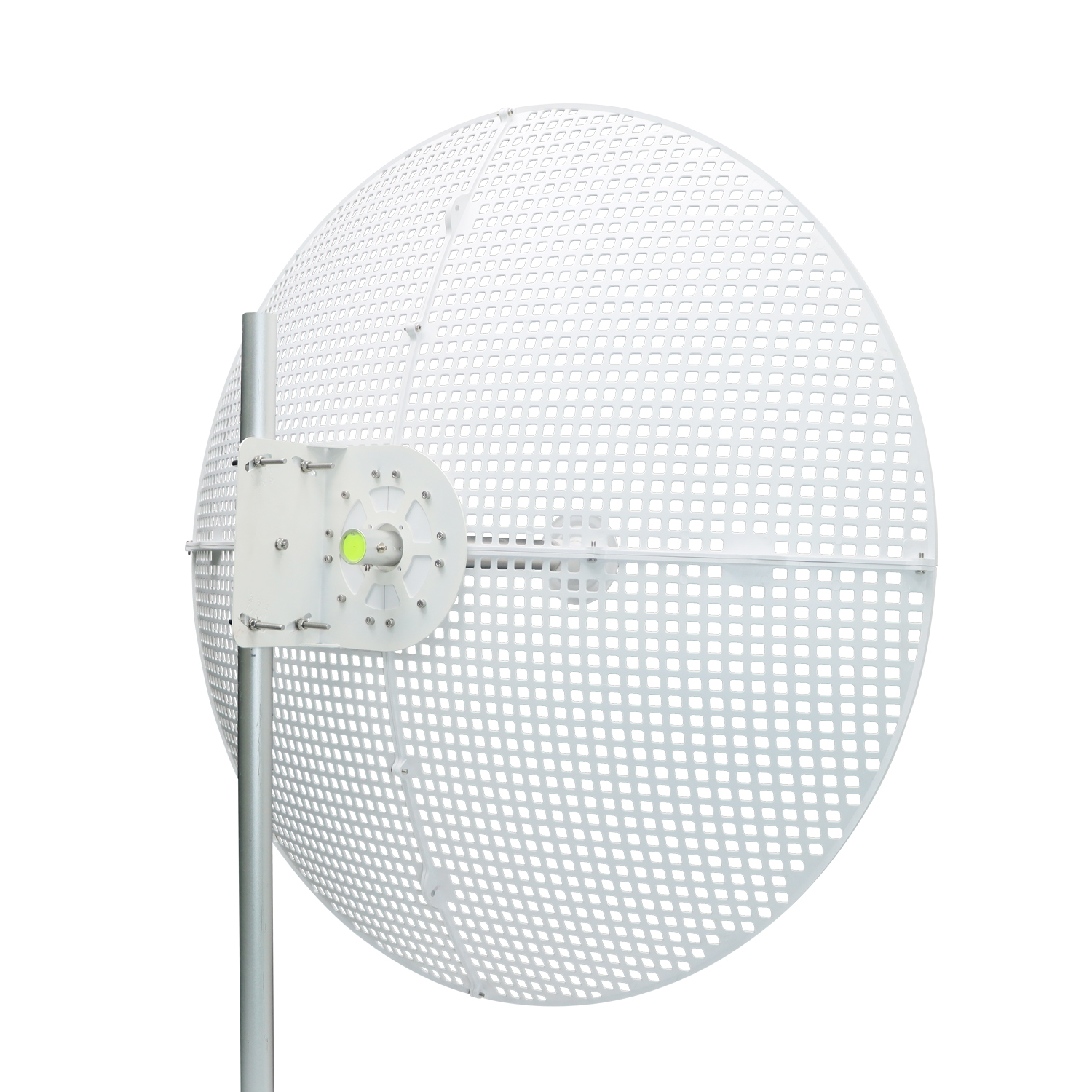

SIL GAN 5836
Model SIL GAN 5836EAN 5060693983122
27 specifications
- Weight10 kg
- ColourWhite
- Antenna gain level (max)36 dBi
- Antenna typeParabolic antenna
- Operating temperature (T-T)-40 - 70 °C
- Diameter120 cm
Overview
- Weight
- 10 kg
- Colour
- White
- Antenna gain level (max)
- 36 dBi
- Antenna type
- Parabolic antenna
- Operating temperature (T-T)
- -40 - 70 °C
- Diameter
- 120 cm
- Brand
- SilverNet
- Category
- Network Antenna
- Model
- SIL GAN 5836
- Part number
- SIL GAN 5836
- EAN / UPC
- 5060693983122
- Also known as
- SilverNet SIL GAN 5836 network antenna Parabolic antenna 2x N-type 36 dBi
Specifications
27 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 36 dBi |
| Frequency band | 4.9 - 7.1 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 3° |
| Vertical beam width | 3° |
Features
| Specification | Value |
|---|---|
| Antenna type | Parabolic antenna |
| Antenna connector type | 2x N-type |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.0 |
| Product colour | White |
| Waterproof | Yes |
| Survival wind speed | 240 km/h |
| Wind load | 150 |
| Front to back ratio | 35 dB |
| Mounting | Wall/Pole |
| Purpose | Outdoor |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
| Certification | CE, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 120 cm |
| Weight | 10 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Bolts included | Yes |
| Mounting brackets included | Yes |
| Mounting kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| UK Trade Tariff code | 85177100 |
