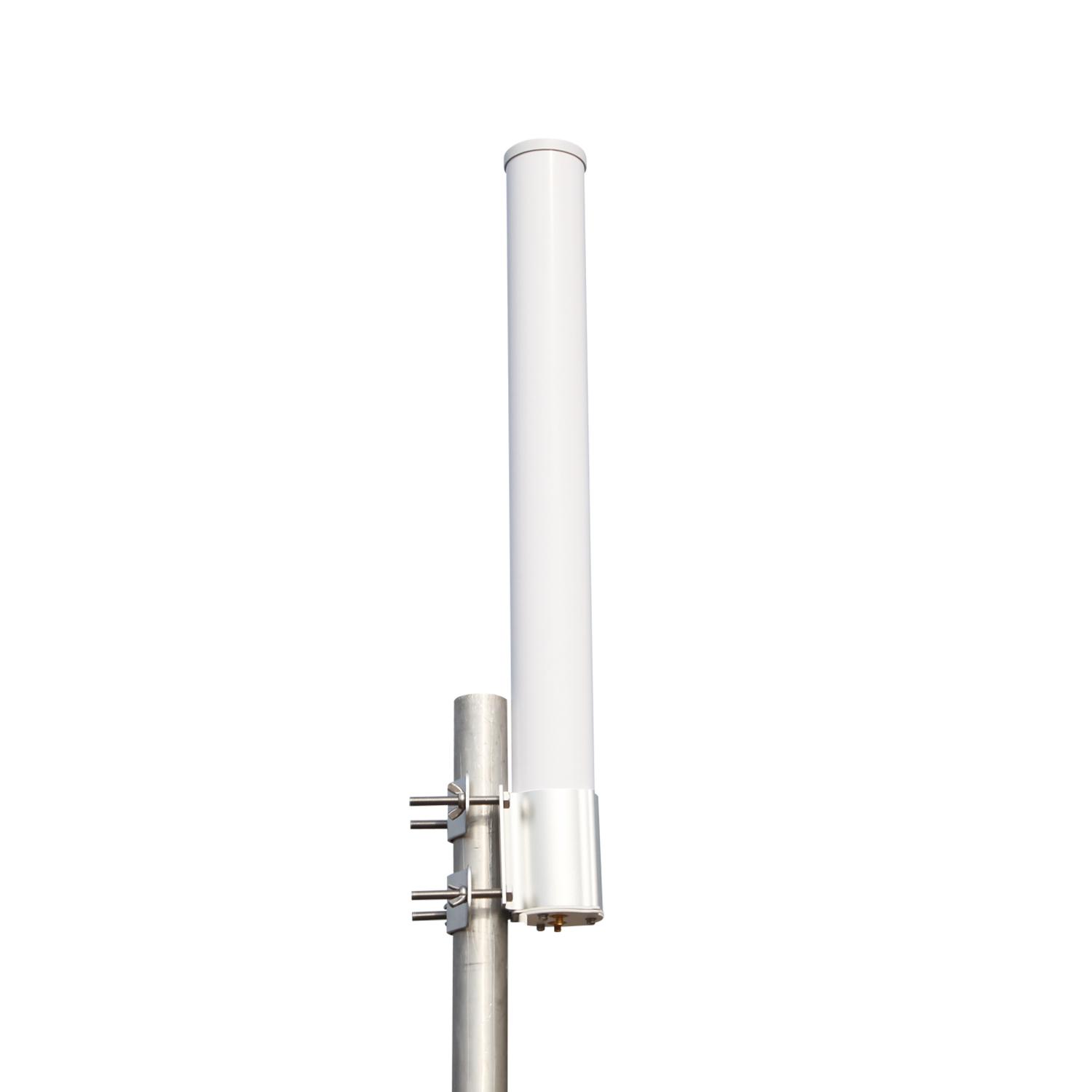

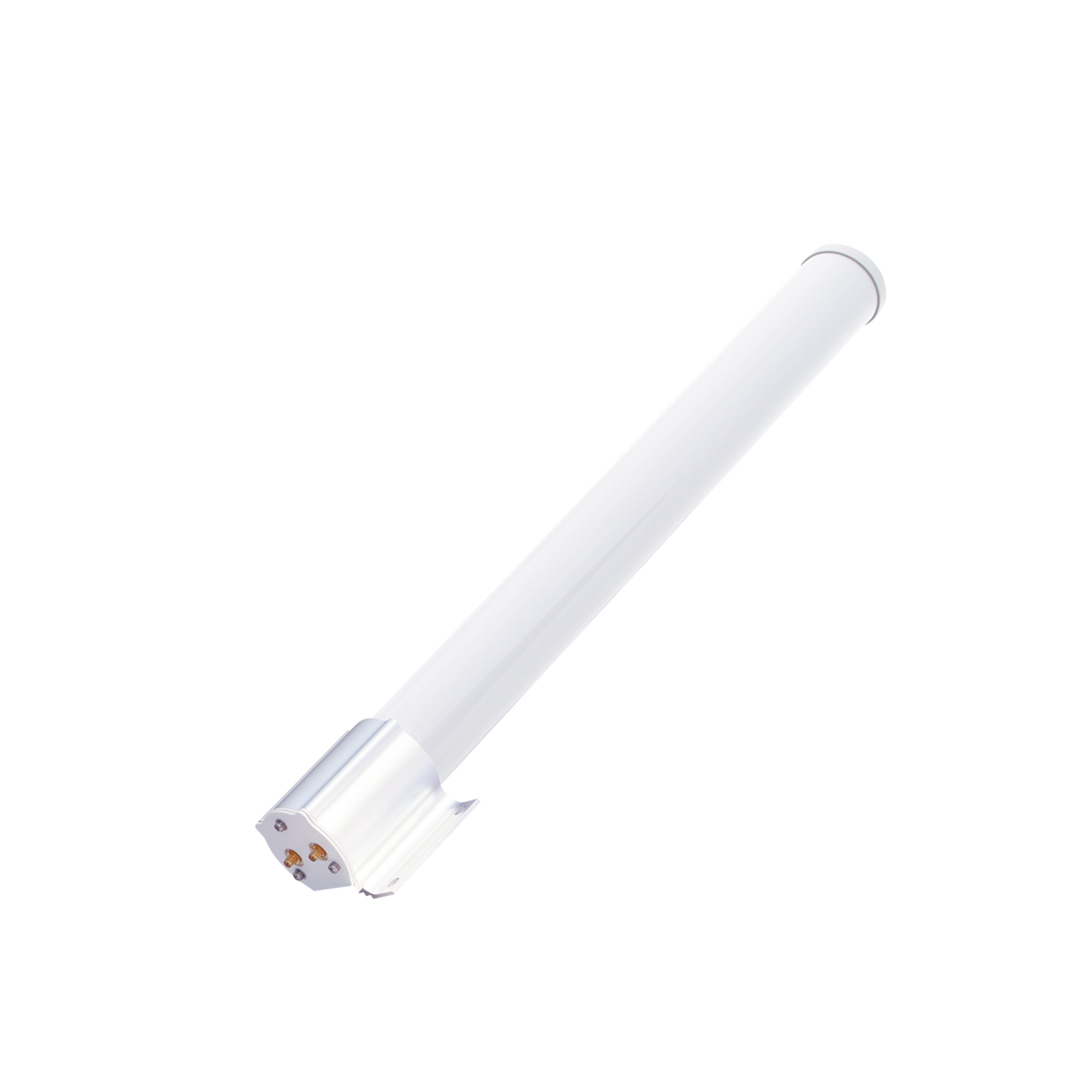

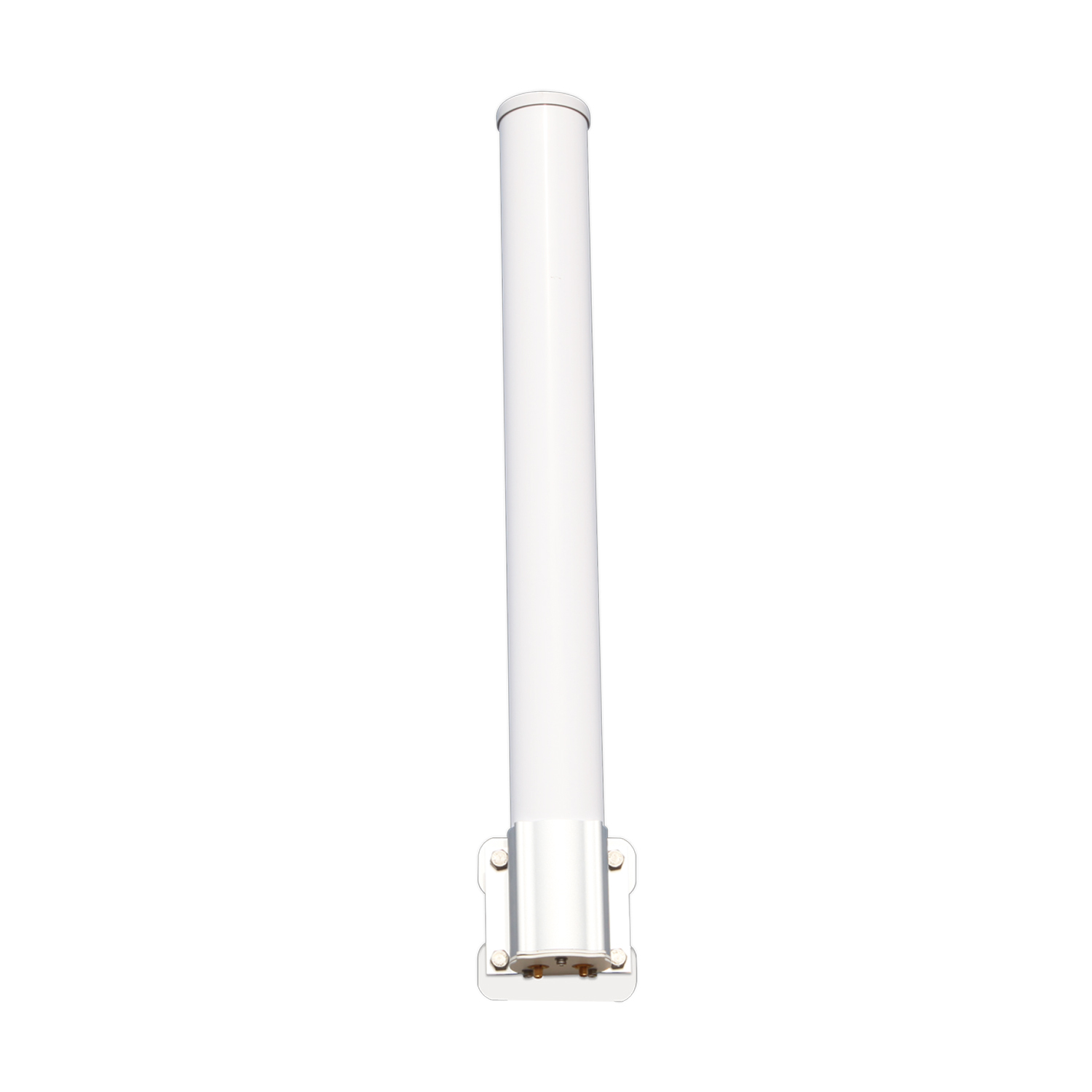

OAN5812 network antenna Omni-directional antenna 2x N-type 13 dBi
Model OAN5812Part no. SIL OAN 5812EAN 5060693980299
30 specifications
- Weight3 kg
- ColourWhite
- Antenna gain level (max)13 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-40 - 70 °C
- Height800 mm
Overview
- Weight
- 3 kg
- Colour
- White
- Antenna gain level (max)
- 13 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -40 - 70 °C
- Height
- 800 mm
- Brand
- SilverNet
- Category
- Network Antenna
- Model
- OAN5812
- Part number
- SIL OAN 5812
- EAN / UPC
- 5060693980299
- Also known as
- SilverNet OAN5812 network antenna Omni-directional antenna 2x N-type 13 dBi
Specifications
30 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 13 dBi |
| Frequency band | 4.9 - 5.8 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 7° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | 2x N-type |
| Connector gender | Female |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.0 |
| Product colour | White |
| Waterproof | Yes |
| Survival wind speed | 241.4 km/h |
| Wind load | 150 |
| Maximum operating distance | 1000 m |
| Mounting | Wall/Pole |
| Purpose | Outdoor |
| Type of clamp | U-bolt |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
| Certification | CE, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 800 mm |
| Diameter | 7 cm |
| Weight | 3 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Bolts included | Yes |
| Mounting brackets included | Yes |
| Mounting kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| UK Trade Tariff code | 85177100 |
