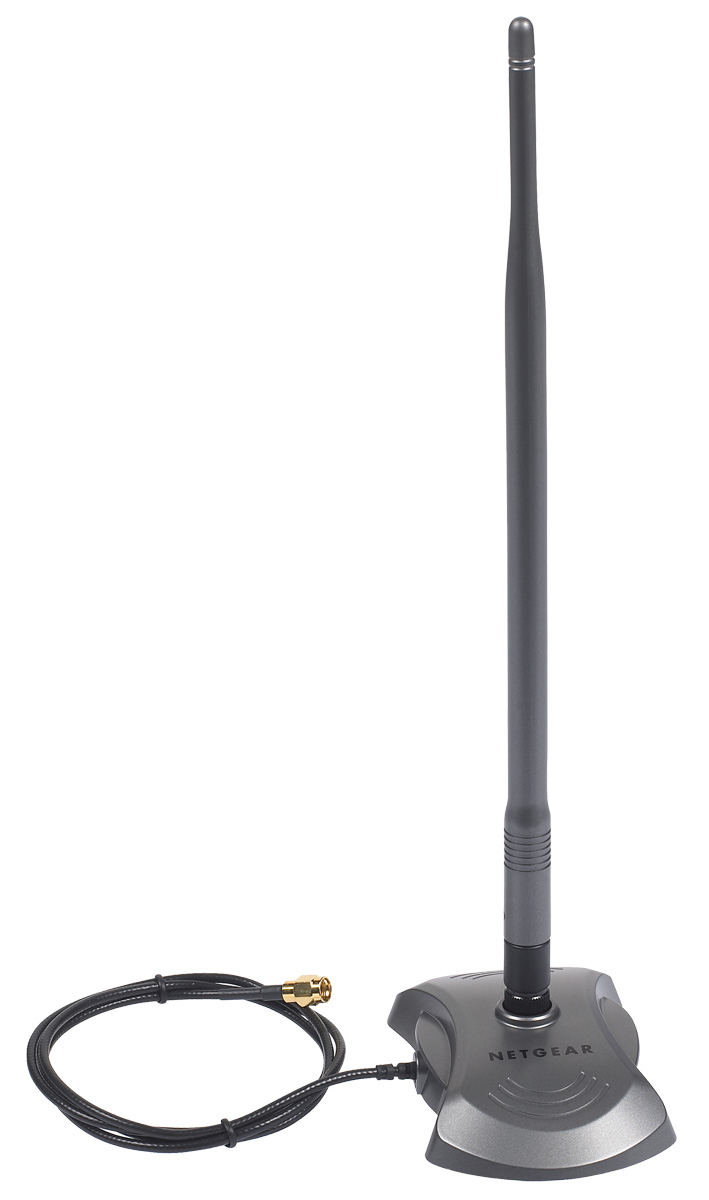

ProSafe 7 DBI Omni-Directional Antenna
Model ProSafe 7 DBI Omni-Directional AntennaPart no. ANT2407-10000SEAN 6064490646500
10 specifications
- Weight230 g
- Antenna gain level (max)7 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)-30 - 80 °C
- Width110 mm
Overview
- Weight
- 230 g
- Antenna gain level (max)
- 7 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- -30 - 80 °C
- Width
- 110 mm
- Brand
- NETGEAR
- Category
- Network Antenna
- Model
- ProSafe 7 DBI Omni-Directional Antenna
- Part number
- ANT2407-10000S
- EAN / UPC
- 6064490646500, 132017948485, 163120269815, 168141652271 +2 more
- Also known as
- NETGEAR ProSafe 7 DBI Omni-Directional Antenna network antenna
Specifications
10 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 7 dBi |
| Horizontal beam width | 360° |
| Vertical beam width | 60° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Cable length | 1.5 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 65 mm |
| Height | 300 mm |
| Weight | 230 g |
