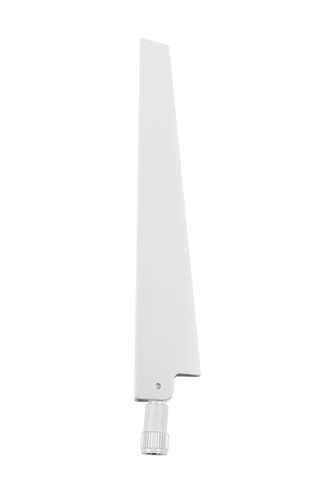

ANT2511AC network antenna Omni-directional antenna RP-SMA 4 dBi
Model ANT2511ACPart no. ANT2511AC-10000SEAN 606449119206
20 specifications
- Weight250 g
- ColourWhite
- Antenna gain level (max)4 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-20 - 60 °C
- Width36.2 mm
Overview
- Weight
- 250 g
- Colour
- White
- Antenna gain level (max)
- 4 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -20 - 60 °C
- Width
- 36.2 mm
- Brand
- NETGEAR
- Category
- Network Antenna
- Model
- ANT2511AC
- Part number
- ANT2511AC-10000S
- EAN / UPC
- 606449119206, 10606449119203
- Also known as
- NETGEAR ANT2511AC network antenna Omni-directional antenna RP-SMA 4 dBi
Specifications
20 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Gain | 2.5 / 4 dBi |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 75° |
| Horizontal beam width (5 GHz) | 360° |
| Vertical beam width (5 GHz) | 22.5° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Polarization | Linear polarization |
| Product colour | White |
| Compatible products | WNDAP360/350/660, WAC720/730/740 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 36.2 mm |
| Depth | 12.7 mm |
| Height | 185 mm |
| Weight | 250 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85177100 |
