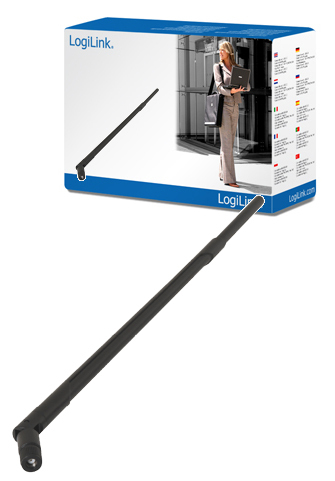

WLAN Antenne SMA
Model WLAN Antenne SMAPart no. WL0037EAN 4014619271955
11 specifications
- Weight46 g
- Antenna gain level (max)9 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)-30 - 60 °C
- Height385 mm
Overview
- Weight
- 46 g
- Antenna gain level (max)
- 9 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- -30 - 60 °C
- Height
- 385 mm
- Brand
- LogiLink
- Category
- Network Antenna
- Model
- WLAN Antenne SMA
- Part number
- WL0037
- EAN / UPC
- 4014619271955, 4260113565155
- Also known as
- LogiLink WLAN Antenne SMA network antenna 9 dBi
Specifications
11 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 9 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 20.5° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Power handling | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 385 mm |
| Weight | 46 g |
