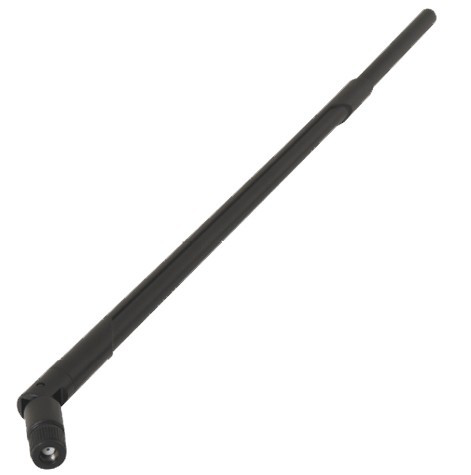

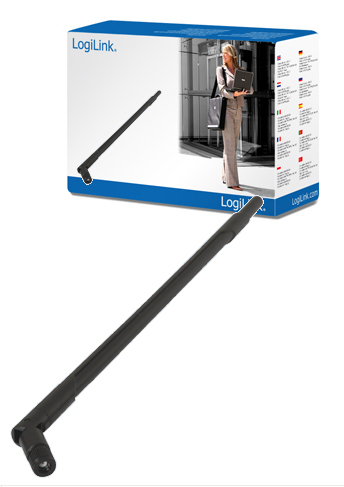

WLAN Antenna SMA
Model WLAN Antenna SMAPart no. WL0036EAN 4260113565148
10 specifications
- Weight42 g
- Antenna gain level (max)7 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)-30 - 60 °C
- Height300 mm
Overview
- Weight
- 42 g
- Antenna gain level (max)
- 7 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- -30 - 60 °C
- Height
- 300 mm
- Brand
- LogiLink
- Category
- Network Antenna
- Model
- WLAN Antenna SMA
- Part number
- WL0036
- EAN / UPC
- 4260113565148
- Also known as
- LogiLink WLAN Antenna SMA network antenna 7 dBi
Specifications
10 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 7 dBi |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 17° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Power handling | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 300 mm |
| Weight | 42 g |
