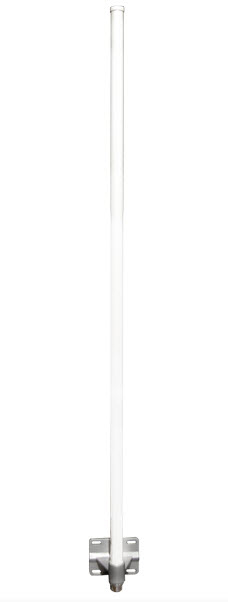

LogiLink WL0094 network antenna Omni-directional antenna N-type 10 dBi

LogiLink WL0094 network antenna Omni-directional antenna N-type 10 dBi

Model WL0094EAN 4052792007404

21 specifications
  • Weight350 g
  • ColourGrey, White
  • Antenna gain level (max)10 dBi
  • Antenna typeOmni-directional antenna
  • Operating temperature (T-T)-40 - 80 °C
  • Height870 mm
See all specifications

Overview

Weight
350 g
Colour
Grey, White
Antenna gain level (max)
10 dBi
Antenna type
Omni-directional antenna
Operating temperature (T-T)
-40 - 80 °C
Height
870 mm
Brand
LogiLink
Model
WL0094
Part number
WL0094
EAN / UPC
4052792007404
Also known as
LogiLink WL0094 network antenna Omni-directional antenna N-type 10 dBi

Specifications

21 specifications in 6 groups

Performance

Antenna gain level (max)10 dBi
Frequency band2.4 - 2.5 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Impedance50 Ω
Horizontal beam width360°
Vertical beam width10°

Features

Antenna typeOmni-directional antenna
Antenna connector typeN-type
Connector genderFemale
PolarizationVertical polarization
Voltage Standing Wave Ratio (VSWR)2.0 : 1
Product colourGrey, White
MountingWall
Power handling10 W
PurposeOutdoor

Certificates

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)-40 - 80 °C

Weight & dimensions

Height870 mm
Diameter1.9 cm
Weight350 g

Logistics data

Harmonized System (HS) code85177100
