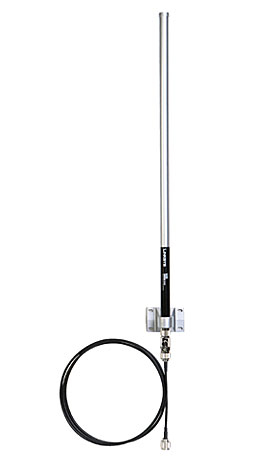

HGA9N Antenna N Type
Model HGA9N Antenna N TypePart no. HGA9NEAN 745883577392
16 specifications
- Weight200 g
- Antenna gain level (max)9 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)-30 - 80 °C
- Width75 mm
Overview
- Weight
- 200 g
- Antenna gain level (max)
- 9 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- -30 - 80 °C
- Width
- 75 mm
- Brand
- Linksys
- Category
- Network Antenna
- Model
- HGA9N Antenna N Type
- Part number
- HGA9N
- EAN / UPC
- 745883577392, 5051749741759
- Also known as
- Linksys HGA9N Antenna N Type network antenna 9 dBi
Specifications
16 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 9 dBi |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 11° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.92: 1 |
| Maximum operating distance | 880 m |
| Power handling | 4 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 80 °C |
| Storage temperature (T-T) | -30 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75 mm |
| Depth | 625 mm |
| Height | 56 mm |
| Weight | 200 g |
Other features
| Specification | Value |
|---|---|
| Network connection type | No |
| Frequency range | 2400 - 2500 MHz |
