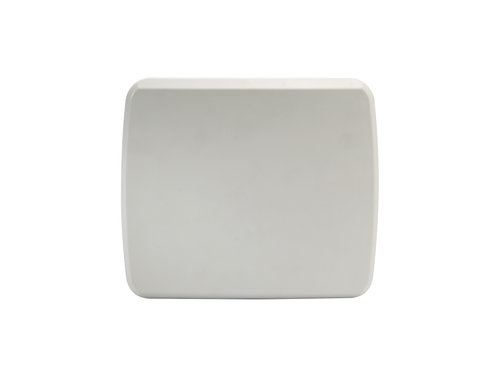

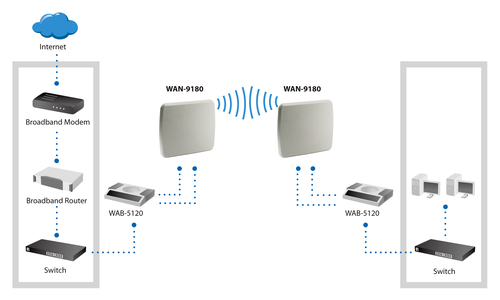

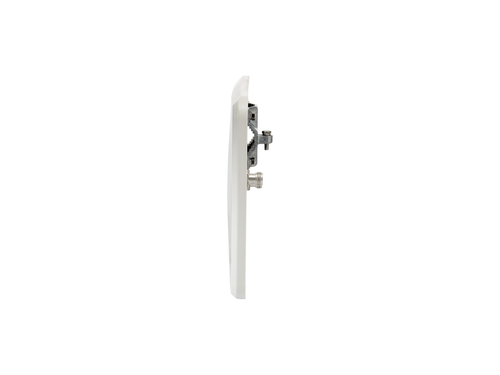

LevelOne 18dBi 5GHz Directional Dual-Polarization Outdoor Panel Antenna

LevelOne 18dBi 5GHz Directional Dual-Polarization Outdoor Panel Antenna

Model WAN-9180EAN 4015867164907

33 specifications
  • Weight435 g
  • ColourGrey
  • Antenna gain level (max)18 dBi
  • Antenna typeDirectional antenna
  • Operating temperature (T-T)-40 - 80 °C
  • Width256 mm
See all specifications

Overview

Weight
435 g
Colour
Grey
Antenna gain level (max)
18 dBi
Antenna type
Directional antenna
Operating temperature (T-T)
-40 - 80 °C
Width
256 mm
Brand
LevelOne
Model
WAN-9180
Part number
WAN-9180
EAN / UPC
4015867164907, 5050914915513
Also known as
LevelOne 18dBi 5GHz Directional Dual-Polarization Outdoor Panel Antenna

Specifications

33 specifications in 7 groups

Performance

Antenna gain level (max)18 dBi
Frequency band5.15 - 5.875 GHz
Networking standardsIEEE 802.11a, IEEE 802.11n
Impedance50 Ω
Horizontal beam width15°
Vertical beam width15°

Features

Antenna typeDirectional antenna

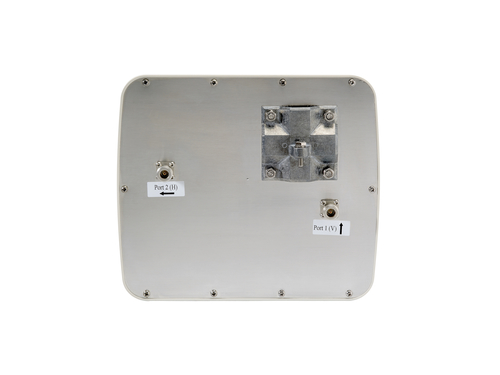

Antenna connector typeN-type
Connector genderFemale
PolarizationDual polarization
Voltage Standing Wave Ratio (VSWR)2.2
Product colourGrey
Housing materialAcrylonitrile butadiene styrene (ABS), Aluminium
WaterproofYes
Survival wind speed216 km/h
MountingWall
Power handling10 W
PurposeIndoor & outdoor

Operational conditions

Operating temperature (T-T)-40 - 80 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width256 mm
Depth227 mm
Height19 mm
Weight435 g

Packaging data

Package width343 mm
Package depth235 mm
Package height47 mm
Package weight188 g

Packaging content

Quantity per pack1 pc(s)
Mounting kitYes
Quick installation guideYes

Logistics data

Harmonized System (HS) code85177100
Country of originTaiwan
