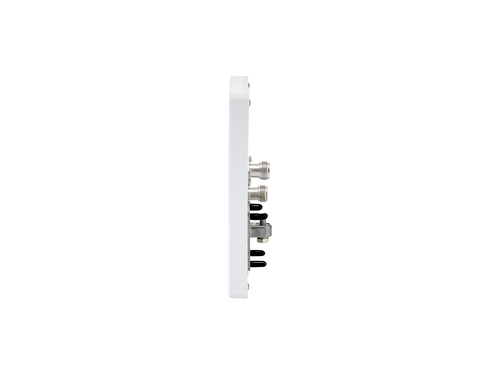

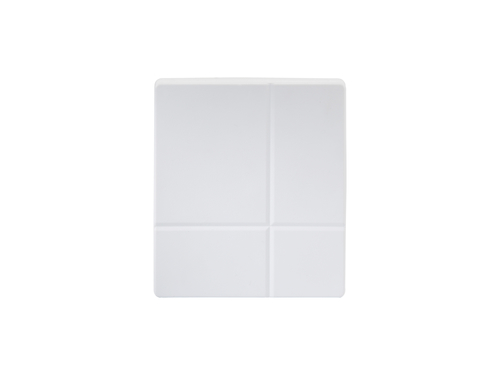

LevelOne 15dBi 5GHz Directional Dual-Polarization Outdoor Panel Antenna

LevelOne 15dBi 5GHz Directional Dual-Polarization Outdoor Panel Antenna

Model WAN-9150EAN 846359014929

28 specifications
  • Weight215 g
  • ColourWhite
  • Antenna gain level (max)15 dBi
  • Antenna typeDirectional antenna
  • Operating temperature (T-T)-40 - 80 °C
  • Width137.5 mm
See all specifications

Overview

Weight
215 g
Colour
White
Antenna gain level (max)
15 dBi
Antenna type
Directional antenna
Operating temperature (T-T)
-40 - 80 °C
Width
137.5 mm
Brand
LevelOne
Model
WAN-9150
Part number
WAN-9150
EAN / UPC
846359014929, 4015867164891
Also known as
LevelOne 15dBi 5GHz Directional Dual-Polarization Outdoor Panel Antenna

Specifications

28 specifications in 6 groups

Performance

Antenna gain level (max)15 dBi
Frequency band5.15 - 5.875 GHz
Networking standardsIEEE 802.11a, IEEE 802.11n
Impedance50 Ω
Horizontal beam width30°
Vertical beam width20°

Features

Antenna typeDirectional antenna

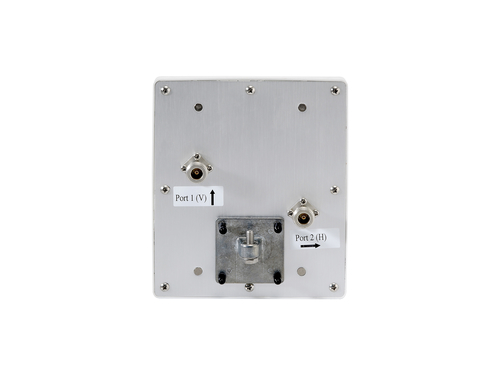

Antenna connector typeN-type
Connector genderFemale
PolarizationDual polarization
Voltage Standing Wave Ratio (VSWR)2.0
Product colourWhite
Housing materialAcrylonitrile butadiene styrene (ABS)
WaterproofYes
Survival wind speed216 km/h
MountingWall
Power handling10 W
PurposeIndoor & outdoor

Operational conditions

Operating temperature (T-T)-40 - 80 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width137.5 mm
Depth162.5 mm
Height16 mm
Weight215 g

Packaging content

Quantity per pack1 pc(s)
Mounting kitYes
Quick installation guideYes

Logistics data

Country of originTaiwan
