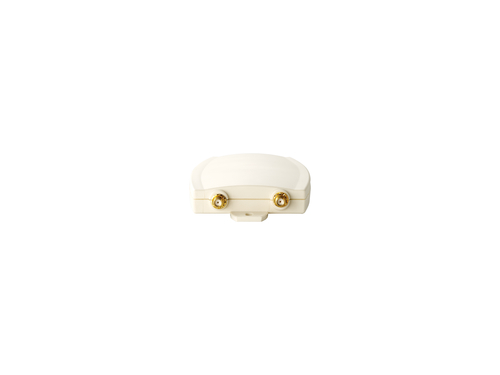

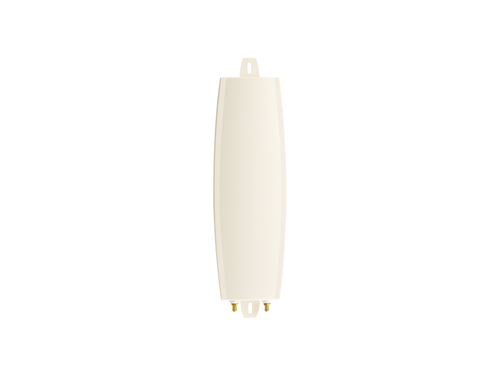

10.5dBi 2.4GHz Directional Dual-Polarization Patch Antenna Kit
Model WAN-7100EAN 4015867163559
23 specifications
- Weight200 g
- ColourWhite
- Antenna gain level (max)10.5 dBi
- Antenna typeDirectional antenna
- Operating temperature (T-T)-10 - 55 °C
- Width93 mm
Overview
- Weight
- 200 g
- Colour
- White
- Antenna gain level (max)
- 10.5 dBi
- Antenna type
- Directional antenna
- Operating temperature (T-T)
- -10 - 55 °C
- Width
- 93 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- WAN-7100
- Part number
- WAN-7100
- EAN / UPC
- 4015867163559
- Also known as
- LevelOne 10.5dBi 2.4GHz Directional Dual-Polarization Patch Antenna Kit
Specifications
23 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 10.5 dBi |
| Frequency band | 2.3 - 2.7 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width | 67° |
| Vertical beam width | 37° |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | SMA |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Product colour | White |
| Mounting | Wall |
| Power handling | 10 W |
| Purpose | Indoor & outdoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 93 mm |
| Depth | 330 mm |
| Height | 21.4 mm |
| Weight | 200 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Cables included | Coaxial |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85177100 |
