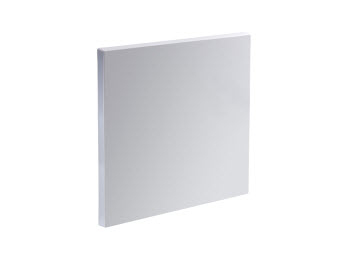

WAN-4232 network antenna Directional antenna N-type 23 dBi
Model WAN-4232EAN 878742002909
21 specifications
- Weight800 g
- ColourWhite
- Antenna gain level (max)23 dBi
- Antenna typeDirectional antenna
- Operating temperature (T-T)-40 - 65 °C
- Width338 mm
Overview
- Weight
- 800 g
- Colour
- White
- Antenna gain level (max)
- 23 dBi
- Antenna type
- Directional antenna
- Operating temperature (T-T)
- -40 - 65 °C
- Width
- 338 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- WAN-4232
- Part number
- WAN-4232
- EAN / UPC
- 878742002909
- Also known as
- LevelOne WAN-4232 network antenna Directional antenna N-type 23 dBi
Specifications
21 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 23 dBi |
| Frequency band | 5 GHz |
| Networking standards | IEEE 802.11a |
| Impedance | 5 Ω |
| Horizontal beam width (5 GHz) | 10° |
| Vertical beam width (5 GHz) | 10° |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | N-type |
| Connector gender | Female |
| Voltage Standing Wave Ratio (VSWR) | 1.7:1 |
| Product colour | White |
| Power handling | 30 W |
| Purpose | Outdoor |
| Compatible products | WAB-7000, WAB-7400 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 338 mm |
| Depth | 43 mm |
| Height | 338 mm |
| Weight | 800 g |
Other features
| Specification | Value |
|---|---|
| Frequency range | 5.15 - 5.875 GHz |
