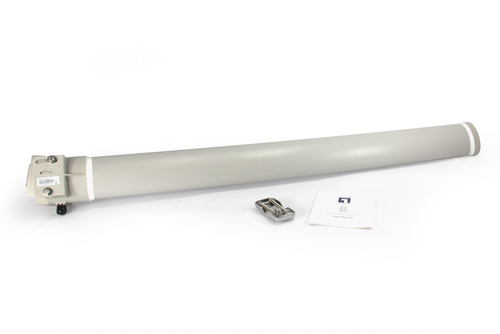

18dBi 2.4GHz Directional Yagi Antenna
Model WAN-2218EAN 4014619974405
21 specifications
- Weight900 g
- ColourGrey
- Antenna gain level (max)18 dBi
- Antenna typeDirectional antenna
- Operating temperature (T-T)-40 - 80 °C
- Width89 mm
Overview
- Weight
- 900 g
- Colour
- Grey
- Antenna gain level (max)
- 18 dBi
- Antenna type
- Directional antenna
- Operating temperature (T-T)
- -40 - 80 °C
- Width
- 89 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- WAN-2218
- Part number
- WAN-2218
- EAN / UPC
- 4014619974405, 4015867145463
- Also known as
- LevelOne 18dBi 2.4GHz Directional Yagi Antenna
Specifications
21 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 18 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width | 15° |
| Vertical beam width | 15° |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Product colour | Grey |
| Mounting | Wall |
| Power handling | 10 W |
| Purpose | Outdoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 89 mm |
| Depth | 50 mm |
| Height | 1000 mm |
| Weight | 900 g |
