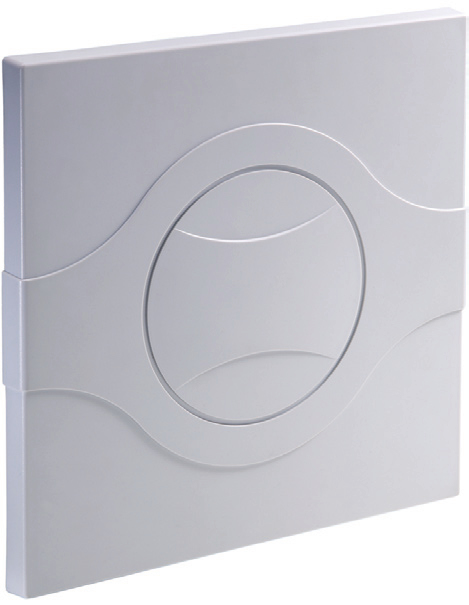

18dBi 2.4GHz Directional Panel Antenna
Model WAN-2181EAN 484776279578
25 specifications
- Weight800 g
- ColourGrey
- Antenna gain level (max)18 dBi
- Antenna typeDirectional antenna
- Operating temperature (T-T)-20 - 80 °C
- Width365 mm
Overview
- Weight
- 800 g
- Colour
- Grey
- Antenna gain level (max)
- 18 dBi
- Antenna type
- Directional antenna
- Operating temperature (T-T)
- -20 - 80 °C
- Width
- 365 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- WAN-2181
- Part number
- WAN-2181
- EAN / UPC
- 484776279578, 878742005351, 4015867145494
- Also known as
- LevelOne 18dBi 2.4GHz Directional Panel Antenna
Specifications
25 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 18 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width | 17° |
| Vertical beam width | 17° |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5 |
| Product colour | Grey |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Survival wind speed | 180 km/h |
| Mounting | Wall |
| Power handling | 30 W |
| Compatible products | WAB-3002 WAB-7400 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 365 mm |
| Depth | 365 mm |
| Height | 20 mm |
| Weight | 800 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
