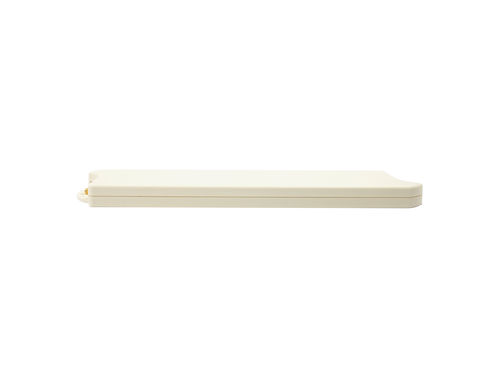

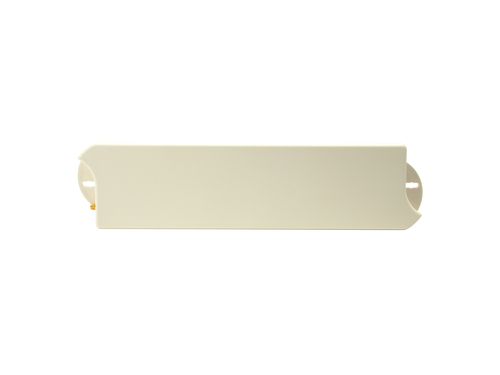

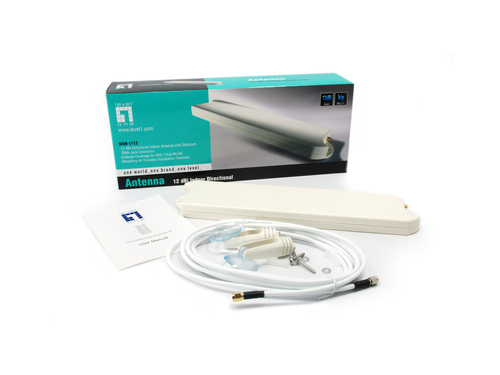

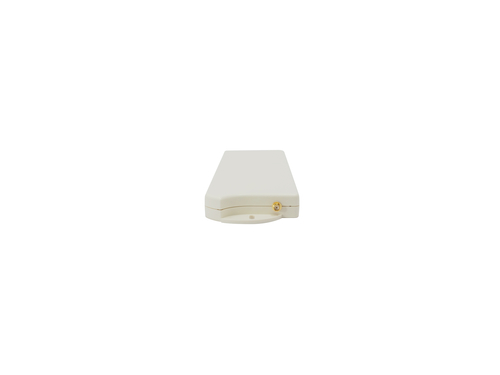

12dBi 2.4GHz Directional Patch Antenna
Model WAN-1112EAN 132017905075
21 specifications
- Weight139 g
- ColourWhite
- Antenna gain level (max)12 dBi
- Antenna typeDirectional antenna
- Operating temperature (T-T)-40 - 85 °C
- Width327 mm
Overview
- Weight
- 139 g
- Colour
- White
- Antenna gain level (max)
- 12 dBi
- Antenna type
- Directional antenna
- Operating temperature (T-T)
- -40 - 85 °C
- Width
- 327 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- WAN-1112
- Part number
- WAN-1112
- EAN / UPC
- 132017905075, 4015867125984
- Also known as
- LevelOne 12dBi 2.4GHz Directional Patch Antenna
Specifications
21 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 12 dBi |
| Frequency band | 2.3 - 2.7 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width | 84° |
| Vertical beam width | 23° |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |

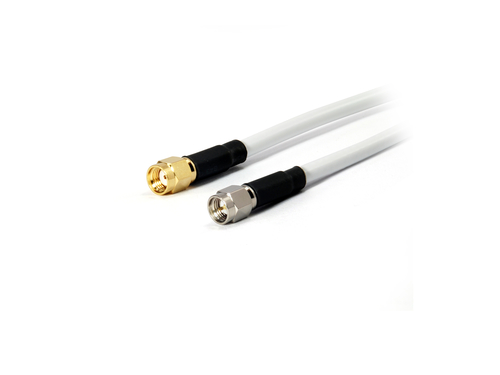

| Antenna connector type | SMA |
| Connector gender | Female |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Product colour | White |
| Mounting | Wall |
| Power handling | 20 W |
| Purpose | Indoor & outdoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 327 mm |
| Depth | 22 mm |
| Height | 80 mm |
| Weight | 139 g |
