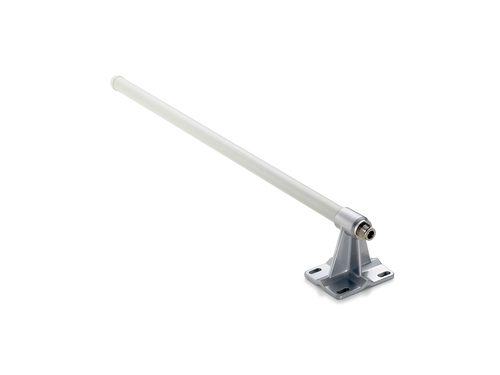

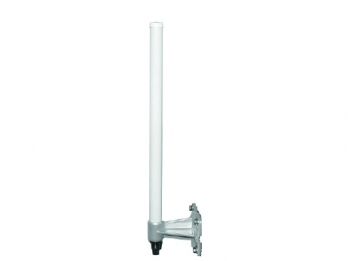

10dBi 5GHz Omni-directional Antenna
Model OAN-4101EAN 4014619977406
25 specifications
- Weight265 g
- ColourStainless steel, White
- Antenna gain level (max)10 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-40 - 80 °C
- Width80 mm
Overview
- Weight
- 265 g
- Colour
- Stainless steel, White
- Antenna gain level (max)
- 10 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -40 - 80 °C
- Width
- 80 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- OAN-4101
- Part number
- OAN-4101
- EAN / UPC
- 4014619977406, 4015867145517
- Also known as
- LevelOne 10dBi 5GHz Omni-directional Antenna
Specifications
25 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 10 dBi |
| Frequency band | 5.5 - 5.825 GHz |
| Networking standards | IEEE 802.11a |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 7° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Product colour | Stainless steel, White |
| Housing material | Glass fibre |
| Ultraviolet (UV) resistant | Yes |
| Survival wind speed | 216 km/h |
| Downtilt | 2° |
| Power handling | 5 W |
| Purpose | Outdoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 760 mm |
| Height | 511 mm |
| Weight | 265 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
