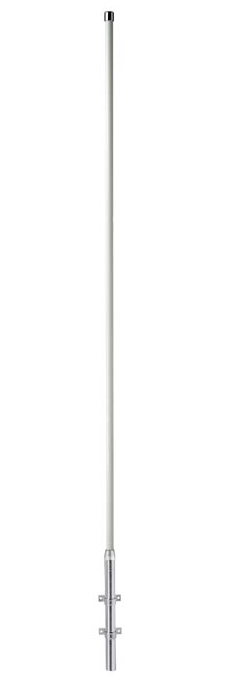

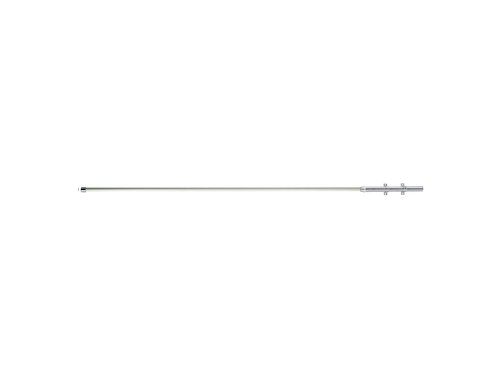

15dBi 2.4GHz Omni-directional Outdoor Antenna
Model OAN-2151EAN 4015867145487
20 specifications
- Weight1.8 kg
- ColourStainless steel
- Antenna gain level (max)15 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-40 - 80 °C
- Depth1860 mm
Overview
- Weight
- 1.8 kg
- Colour
- Stainless steel
- Antenna gain level (max)
- 15 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -40 - 80 °C
- Depth
- 1860 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- OAN-2151
- Part number
- OAN-2151
- EAN / UPC
- 4015867145487
- Also known as
- LevelOne 15dBi 2.4GHz Omni-directional Outdoor Antenna
Specifications
20 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 15 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 9° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Vertical polarization |
| Product colour | Stainless steel |
| Housing material | Glass fibre |
| Survival wind speed | 216 km/h |
| Power handling | 50 W |
| Purpose | Outdoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 1860 mm |
| Diameter | 5.1 cm |
| Weight | 1.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
