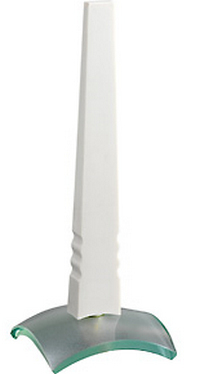

OAN-1040 network antenna Omni-directional antenna RP-SMA 4 dBi
Model OAN-1040EAN 4015867119174
18 specifications
- Weight92 g
- ColourWhite
- Antenna gain level (max)4 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-10 - 55 °C
- Width22 mm
Overview
- Weight
- 92 g
- Colour
- White
- Antenna gain level (max)
- 4 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -10 - 55 °C
- Width
- 22 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- OAN-1040
- Part number
- OAN-1040
- EAN / UPC
- 4015867119174
- Also known as
- LevelOne OAN-1040 network antenna Omni-directional antenna RP-SMA 4 dBi
Specifications
18 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Frequency band | 2.4 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 40° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Product colour | White |
| Compatible products | OAN-1030, OAN-0500 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 12 mm |
| Height | 144 mm |
| Weight | 92 g |
