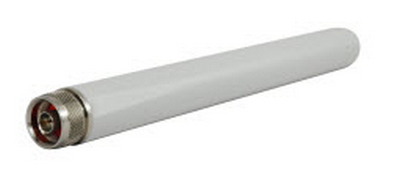

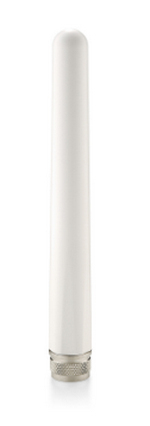

OAN-0600 network antenna Omni-directional antenna N-type 5 dBi
Model OAN-0600EAN 4015867153680
22 specifications
- Weight70 g
- ColourWhite
- Antenna gain level (max)5 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-40 - 70 °C
- Width22 mm
Overview
- Weight
- 70 g
- Colour
- White
- Antenna gain level (max)
- 5 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -40 - 70 °C
- Width
- 22 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- OAN-0600
- Part number
- OAN-0600
- EAN / UPC
- 4015867153680
- Also known as
- LevelOne OAN-0600 network antenna Omni-directional antenna N-type 5 dBi
Specifications
22 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 5 dBi |
| Frequency band | 2.4/5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g |
| Antenna gain (2.4 GHz) | 2.5 dBi |
| Antenna gain (5 GHz) | 5 dBi |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 30° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | N-type |
| Connector gender | Male |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Product colour | White |
| Power handling | 2 W |

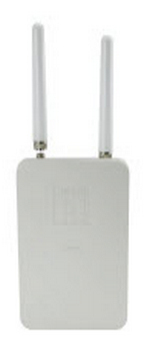

| Compatible products | WAB-3002, WAB-7400 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Height | 178 mm |
| Weight | 70 g |
Other features
| Specification | Value |
|---|---|
| Frequency range | 2.4 - 2.5 GHz, 5.15 - 5.875 GHz |
