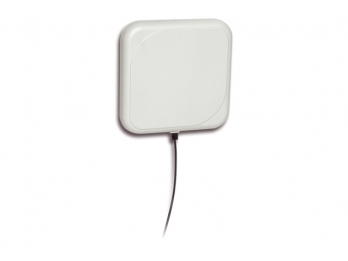

LevelOne 14dBi Panel Directional Antenna
Model 14dBi Panel Directional AntennaPart no. 0540437
12 specifications
- Antenna gain level (max)14 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)-20 - 60 °C
- Width262 mm
Overview
- Antenna gain level (max)
- 14 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- -20 - 60 °C
- Width
- 262 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- 14dBi Panel Directional Antenna
- Part number
- 0540437
- Also known as
- LevelOne 14dBi Panel Directional Antenna network antenna
Specifications
12 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 14 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 30° |
| Vertical beam width | 33° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.92:1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | 10 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 262 mm |
| Depth | 240 mm |
| Height | 32 mm |
