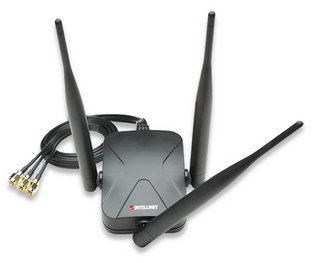

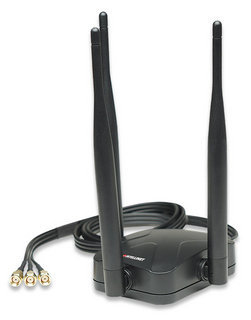

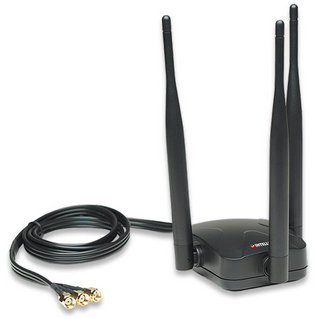

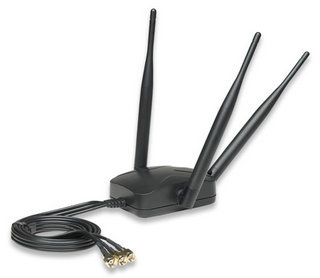

MIMO Antenne
Model MIMO AntennePart no. 524001EAN 766623524001
17 specifications
- Weight625 g
- ColourBlack
- Antenna gain level (max)5 dBi
- Antenna connector typeRP-SMA
- Operating temperature (T-T)-10 - 60 °C
- Width100 mm
Overview
- Weight
- 625 g
- Colour
- Black
- Antenna gain level (max)
- 5 dBi
- Antenna connector type
- RP-SMA
- Operating temperature (T-T)
- -10 - 60 °C
- Width
- 100 mm
- Brand
- Intellinet
- Category
- Network Antenna
- Model
- MIMO Antenne
- Part number
- 524001
- EAN / UPC
- 766623524001, 7666235240012
- Also known as
- Intellinet MIMO Antenne network antenna RP-SMA 5 dBi
Specifications
17 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 5 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 30° |
Features
| Specification | Value |
|---|---|
| Antenna connector type | RP-SMA |
| Voltage Standing Wave Ratio (VSWR) | 1.92:1 |
| Product colour | Black |
| Cable length | 1 m |
| Maximum operating distance | 400 m |
| Power handling | 10 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 110 mm |
| Height | 180 mm |
| Weight | 625 g |
