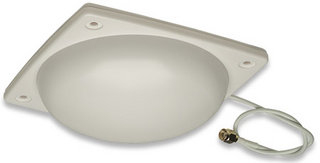

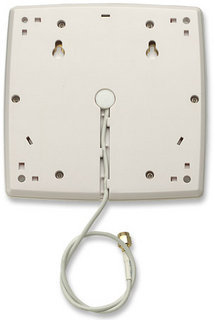

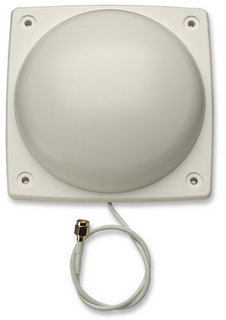

524025 network antenna Omni-directional antenna RP-SMA 4 dBi
Model 524025EAN 766623524025
21 specifications
- Weight200 g
- ColourBeige
- Antenna gain level (max)4 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-20 - 65 °C
- Width125 mm
Overview
- Weight
- 200 g
- Colour
- Beige
- Antenna gain level (max)
- 4 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -20 - 65 °C
- Width
- 125 mm
- Brand
- Intellinet
- Category
- Network Antenna
- Model
- 524025
- Part number
- 524025
- EAN / UPC
- 766623524025, 7666235240258
- Also known as
- Intellinet 524025 network antenna Omni-directional antenna RP-SMA 4 dBi
Specifications
21 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Frequency band | 2.4/5 GHz |
| Antenna gain (2.4 GHz) | 3 dBi |
| Antenna gain (5 GHz) | 4 dBi |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 55° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | ≤2.0 |
| Product colour | Beige |
| Cable length | 3 m |
| Cable type | RG316 |
| Mounting | Ceiling |
| Power handling | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 130 mm |
| Weight | 200 g |
