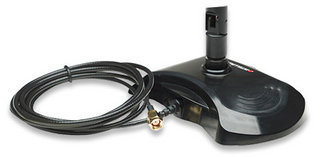

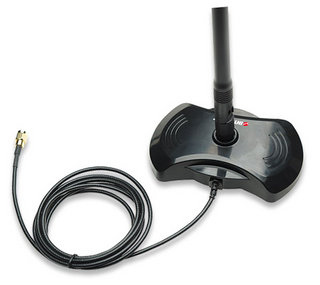

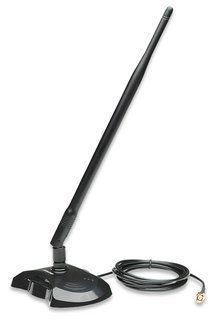

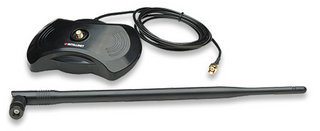

524018 network antenna 7 dBi
Model 524018EAN 766623524018
18 specifications
- Weight240 g
- ColourBlack
- Antenna gain level (max)7 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)-10 - 60 °C
- Width69 mm
Overview
- Weight
- 240 g
- Colour
- Black
- Antenna gain level (max)
- 7 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- -10 - 60 °C
- Width
- 69 mm
- Brand
- Intellinet
- Category
- Network Antenna
- Model
- 524018
- Part number
- 524018
- EAN / UPC
- 766623524018, 7666235240180
- Also known as
- Intellinet 524018 network antenna 7 dBi
Specifications
18 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 7 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 21.6° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.92:1 |
| Product colour | Black |
| Cable length | 1.5 m |
| Maximum operating distance | 450 m |
| Power handling | 10 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69 mm |
| Depth | 114 mm |
| Height | 302 mm |
| Weight | 240 g |
