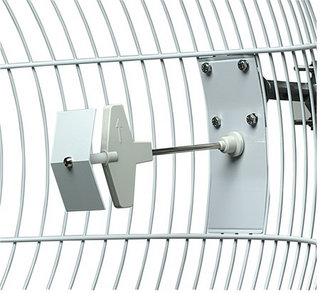

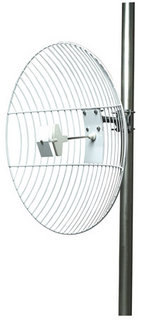

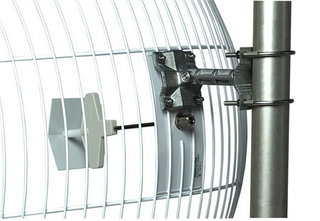

503785 network antenna 24 dBi
Model 503785EAN 766623503785
11 specifications
- Weight3 kg
- ColourWhite
- Antenna gain level (max)24 dBi
- Voltage Standing Wave Ratio (VSWR)2.0
- Operating temperature (T-T)-30 - 80 °C
Overview
- Weight
- 3 kg
- Colour
- White
- Antenna gain level (max)
- 24 dBi
- Voltage Standing Wave Ratio (VSWR)
- 2.0
- Operating temperature (T-T)
- -30 - 80 °C
- Brand
- Intellinet
- Category
- Network Antenna
- Model
- 503785
- Part number
- 503785
- EAN / UPC
- 766623503785, 7666235037858
- Also known as
- Intellinet 503785 network antenna 24 dBi
Specifications
11 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 24 dBi |
| Impedance | 50 Ω |
| Horizontal beam width | 7.7° |
| Vertical beam width | 6.5° |
Features
| Specification | Value |
|---|---|
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Product colour | White |
| Maximum operating distance | 15000 m |
| Power handling | 10 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 80 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
