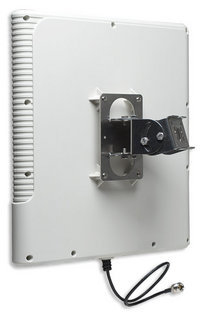

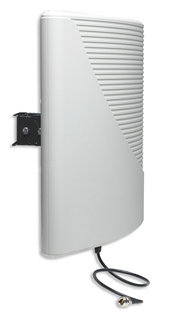

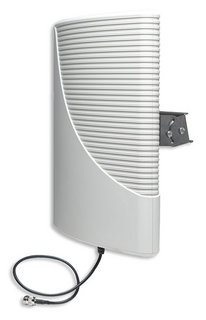

502313 network antenna 18 dBi
Model 502313EAN 766623502313
17 specifications
- Weight1.5 kg
- ColourWhite
- Antenna gain level (max)18 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)-30 - 80 °C
- Width340 mm
Overview
- Weight
- 1.5 kg
- Colour
- White
- Antenna gain level (max)
- 18 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- -30 - 80 °C
- Width
- 340 mm
- Brand
- Intellinet
- Category
- Network Antenna
- Model
- 502313
- Part number
- 502313
- EAN / UPC
- 766623502313, 7666235023134
- Also known as
- Intellinet 502313 network antenna 18 dBi
Specifications
17 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 18 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 18° |
| Vertical beam width | 18° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.92:1 |
| Product colour | White |
| Cable length | 0.45 m |
| Power handling | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 80 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 340 mm |
| Depth | 360 mm |
| Height | 65 mm |
| Weight | 1.5 kg |
