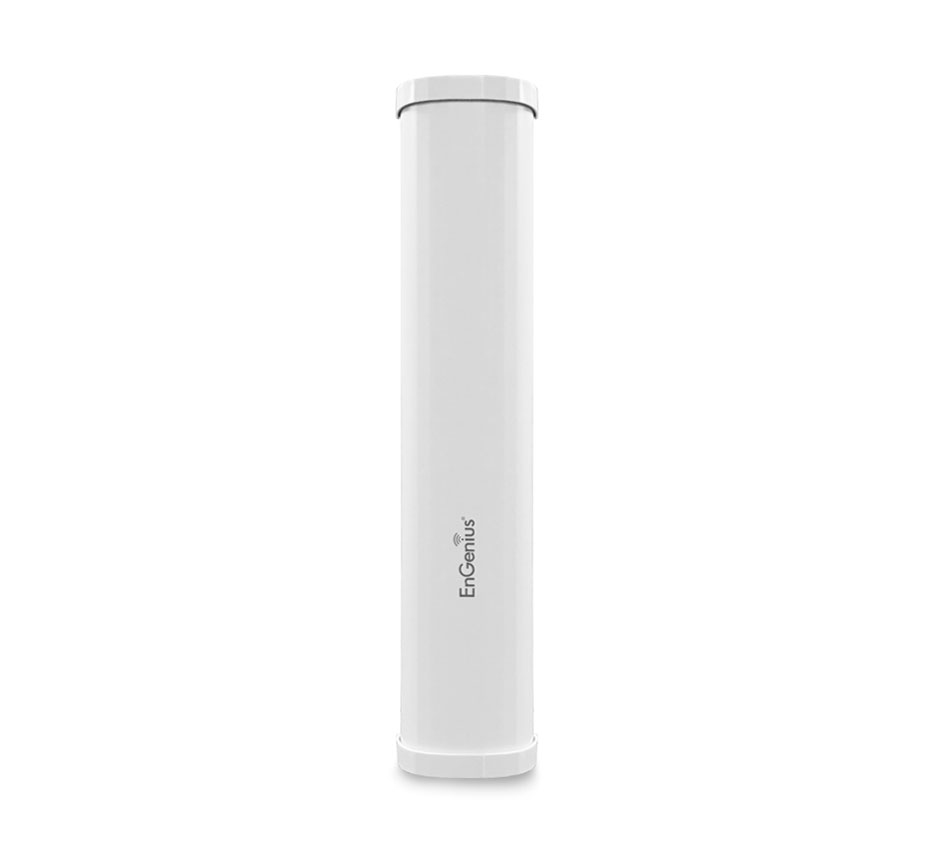

SA2216 network antenna Sector antenna N-type 16 dBi
Model SA2216EAN 655216007819
26 specifications
- Weight2.2 kg
- ColourWhite
- Antenna gain level (max)16 dBi
- Antenna typeSector antenna
- Operating temperature (T-T)-20 - 70 °C
- Width150 mm
Overview
- Weight
- 2.2 kg
- Colour
- White
- Antenna gain level (max)
- 16 dBi
- Antenna type
- Sector antenna
- Operating temperature (T-T)
- -20 - 70 °C
- Width
- 150 mm
- Brand
- EnGenius
- Category
- Network Antenna
- Model
- SA2216
- Part number
- SA2216
- EAN / UPC
- 655216007819, 4713361931895, 6552160078190
- Also known as
- EnGenius SA2216 network antenna Sector antenna N-type 16 dBi
Specifications
26 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 16 dBi |
| Frequency band | 2.3 - 2.7 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 120° |
| Vertical beam width | 9° |
Features
| Specification | Value |
|---|---|
| Antenna type | Sector antenna |
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Product colour | White |
| International Protection (IP) code | IP55 |
| Survival wind speed | 201.168 km/h |
| Isolation | 25 dB |
| Purpose | Outdoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -22 - 176 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 66 mm |
| Height | 74 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick installation guide | Yes |
