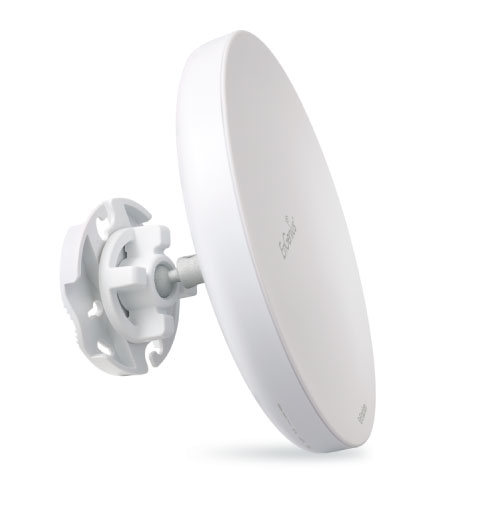

EnStationAC (EnJet)
Model EnStationAC (EnJet)Part no. ENSTATIONACEAN 4713361934636
15 specifications
- ColourWhite
- Antenna gain level (max)19 dBi
- Antenna typeDirectional antenna
- Operating temperature (T-T)-20 - 60 °C
- Height38 mm
Overview
- Colour
- White
- Antenna gain level (max)
- 19 dBi
- Antenna type
- Directional antenna
- Operating temperature (T-T)
- -20 - 60 °C
- Height
- 38 mm
- Brand
- EnGenius
- Category
- Network Antenna
- Model
- EnStationAC (EnJet)
- Part number
- ENSTATIONAC
- EAN / UPC
- 4713361934636, 655216007758, 4713361930812, 5060402401350 +1 more
- Also known as
- EnGenius EnStationAC Outdoor PtP CPE 11ac Wave2 5GHz 867Mbps 2T2R 19dBi directional antenna 30° 2GbE PoE.at-in PoE.af-out EnJet (TDMA)
Specifications
15 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 19 dBi |
| Frequency band | 5 GHz |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Gain | 5 dBi |
| Antenna gain (5 GHz) | 19 dBi |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Product colour | White |
| International Protection (IP) code | IP55 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -30 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 38 mm |
| Diameter | 19 cm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85177100 |
