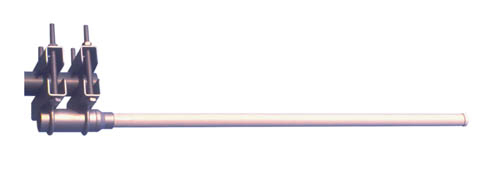

Omni-directional Outdoor Antenna
Model Omni-directional Outdoor AntennaPart no. ANT24-0800EAN 790069243141
14 specifications
- Weight3.34 kg
- Antenna gain level (max)8 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-40 - 80 °C
- Width19 mm
Overview
- Weight
- 3.34 kg
- Antenna gain level (max)
- 8 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -40 - 80 °C
- Width
- 19 mm
- Brand
- D-Link
- Category
- Network Antenna
- Model
- Omni-directional Outdoor Antenna
- Part number
- ANT24-0800
- EAN / UPC
- 790069243141, 5051749523331, 7900692431416
- Also known as
- D-Link Omni-directional Outdoor Antenna network antenna Omni-directional antenna 8 dBi
Specifications
14 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 8 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 15° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Cable length | 0.5 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 19 mm |
| Depth | 19 mm |
| Height | 630 mm |
| Weight | 3.34 kg |
