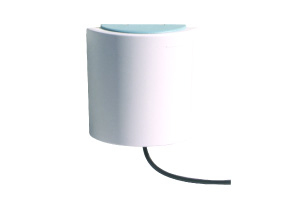

Directional Indoor/Outdoor Patch Antenna
Model Directional Indoor/Outdoor Patch AntennaPart no. ANT24-0801EAN 790069243158
12 specifications
- Weight300 g
- Antenna gain level (max)8.5 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)-40 - 80 °C
- Width120 mm
Overview
- Weight
- 300 g
- Antenna gain level (max)
- 8.5 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- -40 - 80 °C
- Width
- 120 mm
- Brand
- D-Link
- Category
- Network Antenna
- Model
- Directional Indoor/Outdoor Patch Antenna
- Part number
- ANT24-0801
- EAN / UPC
- 790069243158, 7900692431584
- Also known as
- D-Link Directional Indoor/Outdoor Patch Antenna network antenna 8.5 dBi
Specifications
12 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 8.5 dBi |
| Impedance | 50 Ω |
| Horizontal beam width | 70° |
| Vertical beam width | 65° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Cable length | 3 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 43 mm |
| Weight | 300 g |
