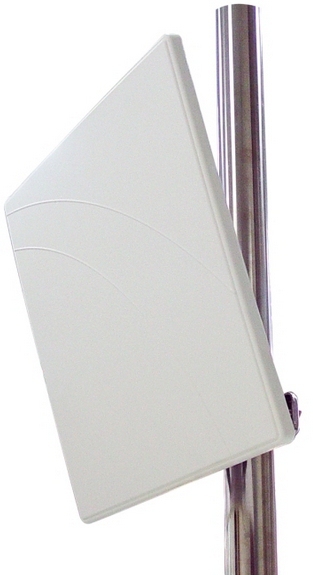

ANT70-1400N network antenna Directional antenna N-type 14 dBi
Model ANT70-1400NEAN 790069326707
28 specifications
- Weight1.72 kg
- ColourWhite
- Antenna gain level (max)14 dBi
- Antenna typeDirectional antenna
- Operating temperature (T-T)-40 - 80 °C
- Width360 mm
Overview
- Weight
- 1.72 kg
- Colour
- White
- Antenna gain level (max)
- 14 dBi
- Antenna type
- Directional antenna
- Operating temperature (T-T)
- -40 - 80 °C
- Width
- 360 mm
- Brand
- D-Link
- Category
- Network Antenna
- Model
- ANT70-1400N
- Part number
- ANT70-1400N
- EAN / UPC
- 790069326707
- Also known as
- D-Link ANT70-1400N network antenna Directional antenna N-type 14 dBi
Specifications
28 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 14 dBi |
| Frequency band | 2.4/5 GHz |
| Networking standards | IEEE 802.11n |
| Antenna gain (2.4 GHz) | 11 dBi |
| Antenna gain (5 GHz) | 14 dBi |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 44° |
| Vertical beam width (2.4 GHz) | 41° |
| Horizontal beam width (5 GHz) | 22° |
| Vertical beam width (5 GHz) | 31° |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Product colour | White |
| Mounting | Wall |
| Power handling | 10 W |
| Purpose | Outdoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 55 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 360 mm |
| Depth | 360 mm |
| Height | 40 mm |
| Weight | 1.72 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Coaxial |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 360 x 360 x 40 mm |
| Frequency range | 2.4 - 2.5GHz, 5.150 - 5.875GHz |
