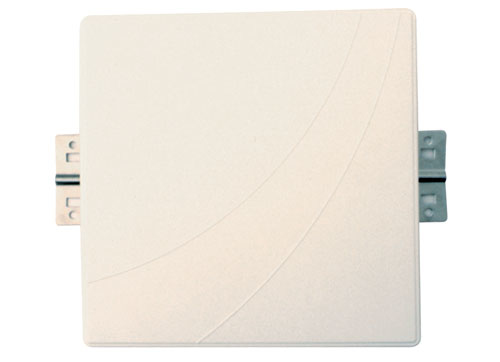

ANT24-1800 network antenna N-type 18 dBi
Model ANT24-1800EAN 8032976048429
15 specifications
- Weight1.6 kg
- ColourWhite
- Antenna gain level (max)18 dBi
- Antenna connector typeN-type
- Operating temperature (T-T)-40 - 80 °C
- Width360 mm
Overview
- Weight
- 1.6 kg
- Colour
- White
- Antenna gain level (max)
- 18 dBi
- Antenna connector type
- N-type
- Operating temperature (T-T)
- -40 - 80 °C
- Width
- 360 mm
- Brand
- D-Link
- Category
- Network Antenna
- Model
- ANT24-1800
- Part number
- ANT24-1800
- EAN / UPC
- 8032976048429, 790069239946, 5051749523393, 5052584029859 +3 more
- Also known as
- D-Link ANT24-1800 network antenna N-type 18 dBi
Specifications
15 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 18 dBi |
| Frequency band | 2.4 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 15° |
| Vertical beam width | 15° |
Features
| Specification | Value |
|---|---|
| Antenna connector type | N-type |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5 |
| Product colour | White |
| Power handling | 50 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 360 mm |
| Depth | 16 mm |
| Height | 360 mm |
| Weight | 1.6 kg |
