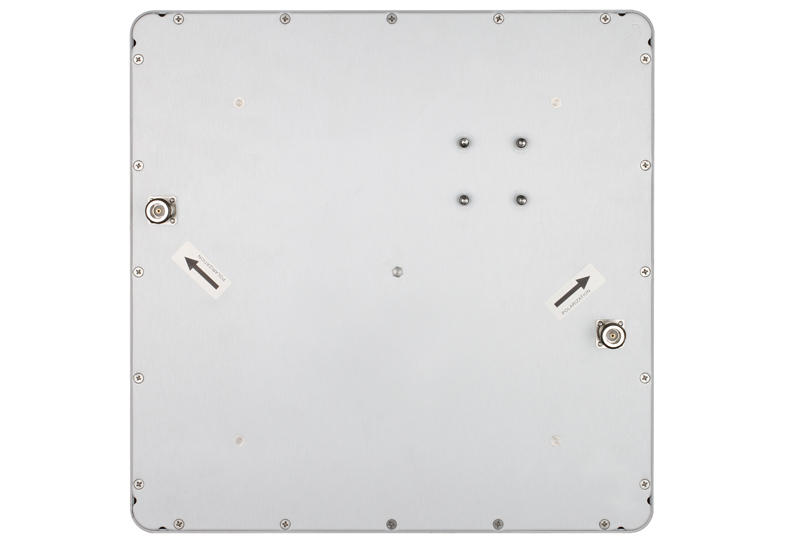

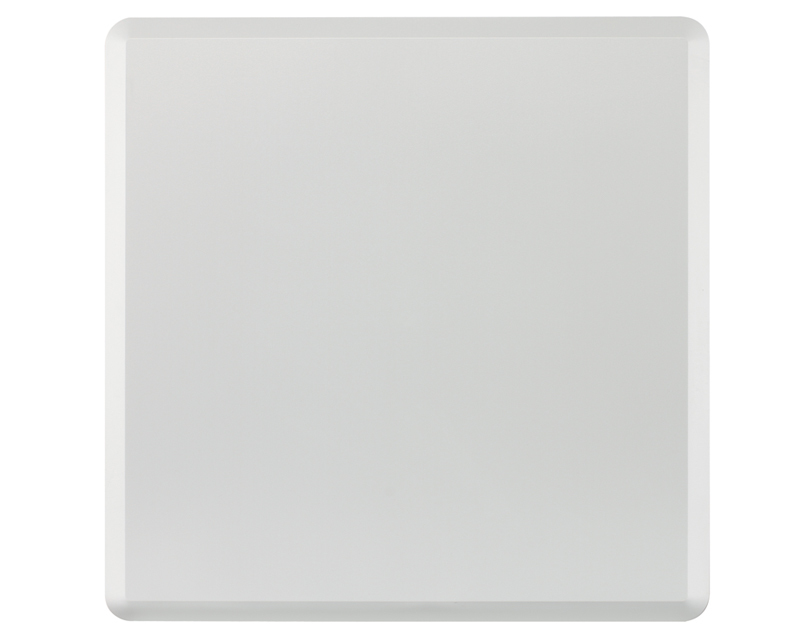

D-Link ANT24-1600N network antenna Directional antenna 17 dBi

D-Link ANT24-1600N network antenna Directional antenna 17 dBi

Model ANT24-1600NEAN 790069362422

18 specifications
  • Weight1.1 kg
  • ColourWhite
  • Antenna gain level (max)17 dBi
  • Antenna typeDirectional antenna
  • Operating temperature (T-T)-40 - 80 °C
  • Width320 mm
See all specifications

Overview

Weight
1.1 kg
Colour
White
Antenna gain level (max)
17 dBi
Antenna type
Directional antenna
Operating temperature (T-T)
-40 - 80 °C
Width
320 mm
Brand
D-Link
Model
ANT24-1600N
Part number
ANT24-1600N
EAN / UPC
790069362422, 3609740155543
Also known as
D-Link ANT24-1600N network antenna Directional antenna 17 dBi

Specifications

18 specifications in 5 groups

Performance

Antenna gain level (max)17 dBi
Frequency band2.4 - 2.5 GHz
Impedance50 Ω
Horizontal beam width25°
Vertical beam width25°

Features

Antenna typeDirectional antenna
PolarizationDual polarization
Voltage Standing Wave Ratio (VSWR)2.0:1
Product colourWhite
MountingWall
Power handling20 W
PurposeOutdoor

Certificates

CertificationIP 67 ETSI EN 301 525 v1.1.1 TS1-TS3

Operational conditions

Operating temperature (T-T)-40 - 80 °C

Weight & dimensions

Width320 mm
Depth320 mm
Height43 mm
Weight1.1 kg
