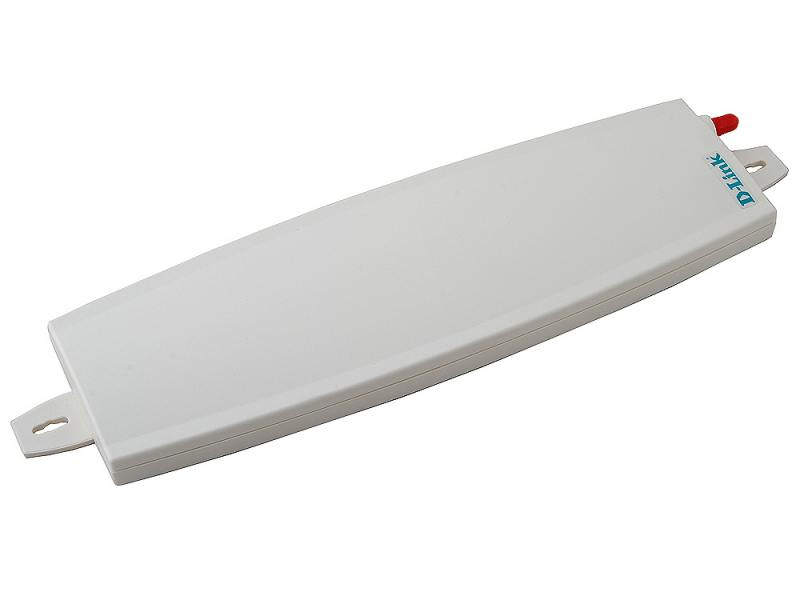

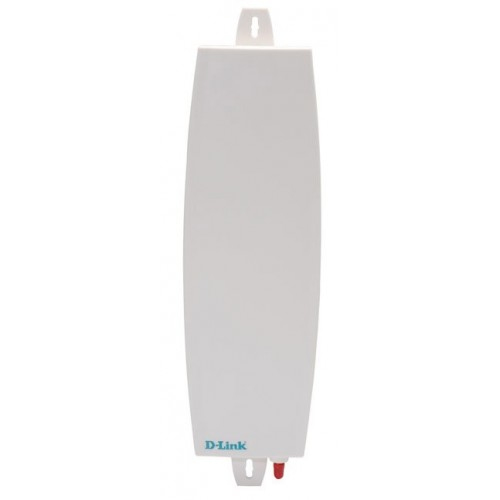

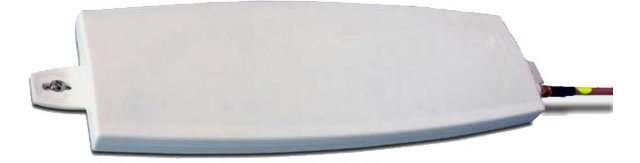

ANT24-1200 network antenna Omni-directional antenna RP-SMA 12 dBi
Model ANT24-1200EAN 790069243134
23 specifications
- Weight190 g
- ColourWhite
- Antenna gain level (max)12 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-10 - 55 °C
- Width330 mm
Overview
- Weight
- 190 g
- Colour
- White
- Antenna gain level (max)
- 12 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -10 - 55 °C
- Width
- 330 mm
- Brand
- D-Link
- Category
- Network Antenna
- Model
- ANT24-1200
- Part number
- ANT24-1200
- EAN / UPC
- 790069243134, 5711045276309, 7900692431348
- Also known as
- D-Link ANT24-1200 network antenna Omni-directional antenna RP-SMA 12 dBi
Specifications
23 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 12 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 80° |
| Vertical beam width (2.4 GHz) | 23° |
| Horizontal beam width (5 GHz) | 80° |
| Vertical beam width (5 GHz) | 23° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Product colour | White |
| Cable length | 3 m |
| Purpose | Indoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 93 mm |
| Height | 20.7 mm |
| Weight | 190 g |
Other features
| Specification | Value |
|---|---|
| Network connection type | SMA FM |
| Compliance industry standards | v |
