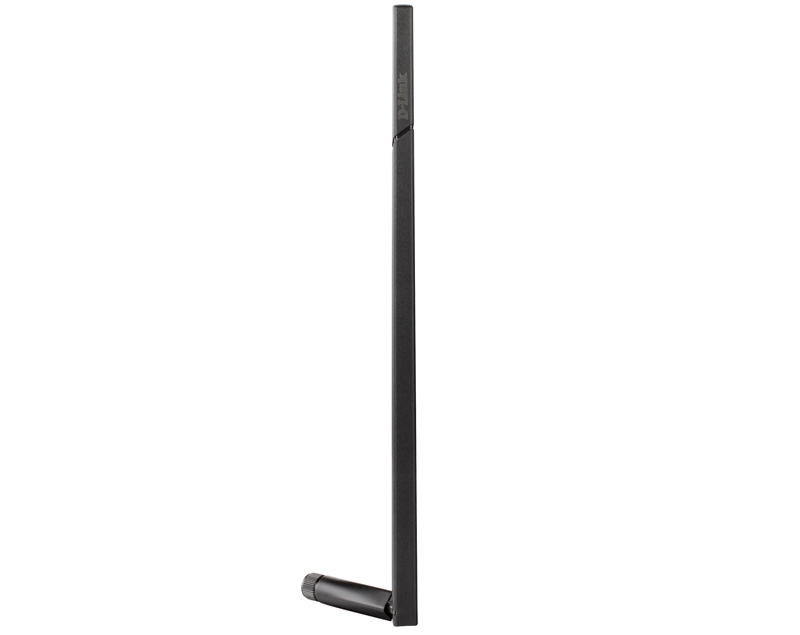

ANT24-0802C network antenna Omni-directional antenna RP-SMA 8 dBi
Model ANT24-0802C
18 specifications
- Weight35 g
- ColourBlack
- Antenna gain level (max)8 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-10 - 45 °C
- Width13 mm
Overview
- Weight
- 35 g
- Colour
- Black
- Antenna gain level (max)
- 8 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -10 - 45 °C
- Width
- 13 mm
- Brand
- D-Link
- Category
- Network Antenna
- Model
- ANT24-0802C
- Part number
- ANT24-0802C
- Also known as
- D-Link ANT24-0802C network antenna Omni-directional antenna RP-SMA 8 dBi
Specifications
18 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 8 dBi |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 24° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Product colour | Black |
| Purpose | Indoor |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13 mm |
| Depth | 13 mm |
| Height | 325 mm |
| Weight | 35 g |
