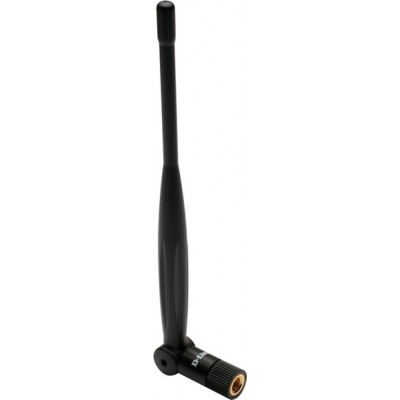

ANT24-0502 network antenna Omni-directional antenna RP-SMA 5 dBi
Model ANT24-0502EAN 790069311918
17 specifications
- Weight20 g
- ColourBlack
- Antenna gain level (max)5 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-10 - 55 °C
- Width13.5 mm
Overview
- Weight
- 20 g
- Colour
- Black
- Antenna gain level (max)
- 5 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -10 - 55 °C
- Width
- 13.5 mm
- Brand
- D-Link
- Category
- Network Antenna
- Model
- ANT24-0502
- Part number
- ANT24-0502
- EAN / UPC
- 790069311918
- Also known as
- D-Link ANT24-0502 network antenna Omni-directional antenna RP-SMA 5 dBi
Specifications
17 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 5 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 40° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Product colour | Black |
| Purpose | Indoor |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.5 mm |
| Depth | 13.5 mm |
| Height | 188 mm |
| Weight | 20 g |
