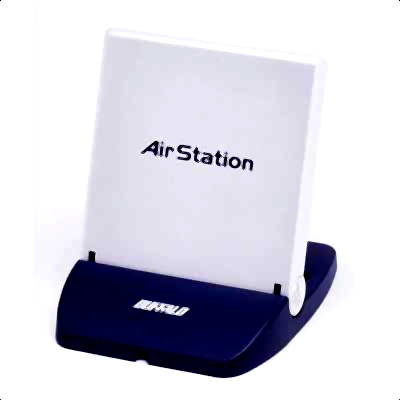

High Gain Flat
Model High Gain FlatPart no. WLE-DA-3EAN 680807004861
18 specifications
- Weight300 g
- ColourBlack, White
- Antenna gain level (max)4 dBi
- Antenna typeDirectional antenna
- Width100 mm
Overview
- Weight
- 300 g
- Colour
- Black, White
- Antenna gain level (max)
- 4 dBi
- Antenna type
- Directional antenna
- Width
- 100 mm
- Brand
- Buffalo
- Category
- Network Antenna
- Model
- High Gain Flat
- Part number
- WLE-DA-3
- EAN / UPC
- 680807004861
- Also known as
- Buffalo High Gain Flat network antenna Directional antenna RP-SMA 4 dBi
Specifications
18 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Frequency band | 2.4 GHz |
| Antenna gain (2.4 GHz) | 4 dBi |
| Impedance | 75 Ω |
| Horizontal beam width | 75° |
| Vertical beam width | 75° |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | RP-SMA |
| Polarization | Circular polarization |
| Product colour | Black, White |
| Cable length | 2.75 m |
| Mounting | Wall |
| Compatible products | AirStation Access Point, WLI-PCM-L11 PCMCIA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 100 mm |
| Height | 17 mm |
| Weight | 300 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Coaxial |
